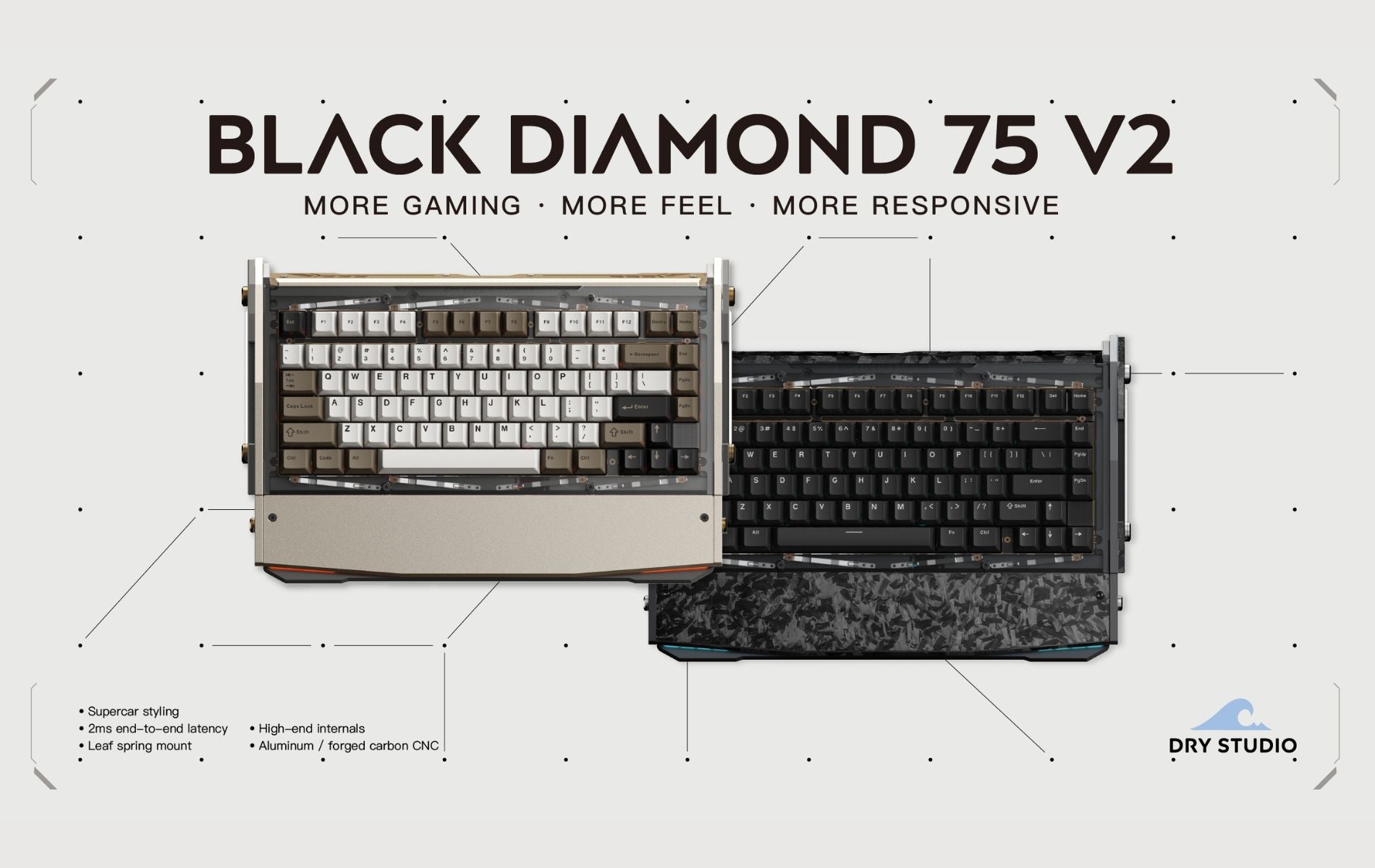

Dry Studio Black Diamond 75 V2
Pre-Purchase
- Please fill in your full name and detailed shipping address in English and allow 7 business days for processing.
- We reserve the right to cancel fraudulent orders (including but not limited to unauthorized use of promo codes) without further notice.
- If you refuse to take the receipt of your order or return a product without valid reason, you will be at minimum charged the two-way delivery fees and taxes, depending on the product's condition.
- If a refund request (with valid reason) is approved, the total refund amount may exclude postage and taxes.
- There are some situations where we cannot refund. Please refer to our return policy.
- The product renderings are for reference only. The actual product prevails.
- Differences in angles and lighting while shooting may cause color differences. The actual product prevails.
- Please join our Discord for more info: https://discord.gg/angrymiao, https://discord.gg/drystudio
Shipping Policy
- Please fill in the full name and detailed shipping address in English and allow 7 business days for processing.
- Freight and taxes are not included in the selling price.
- Once your order has been shipped, we are unable to make any changes to the shipping address.
- Please find detailed information on shipping policy & return policy

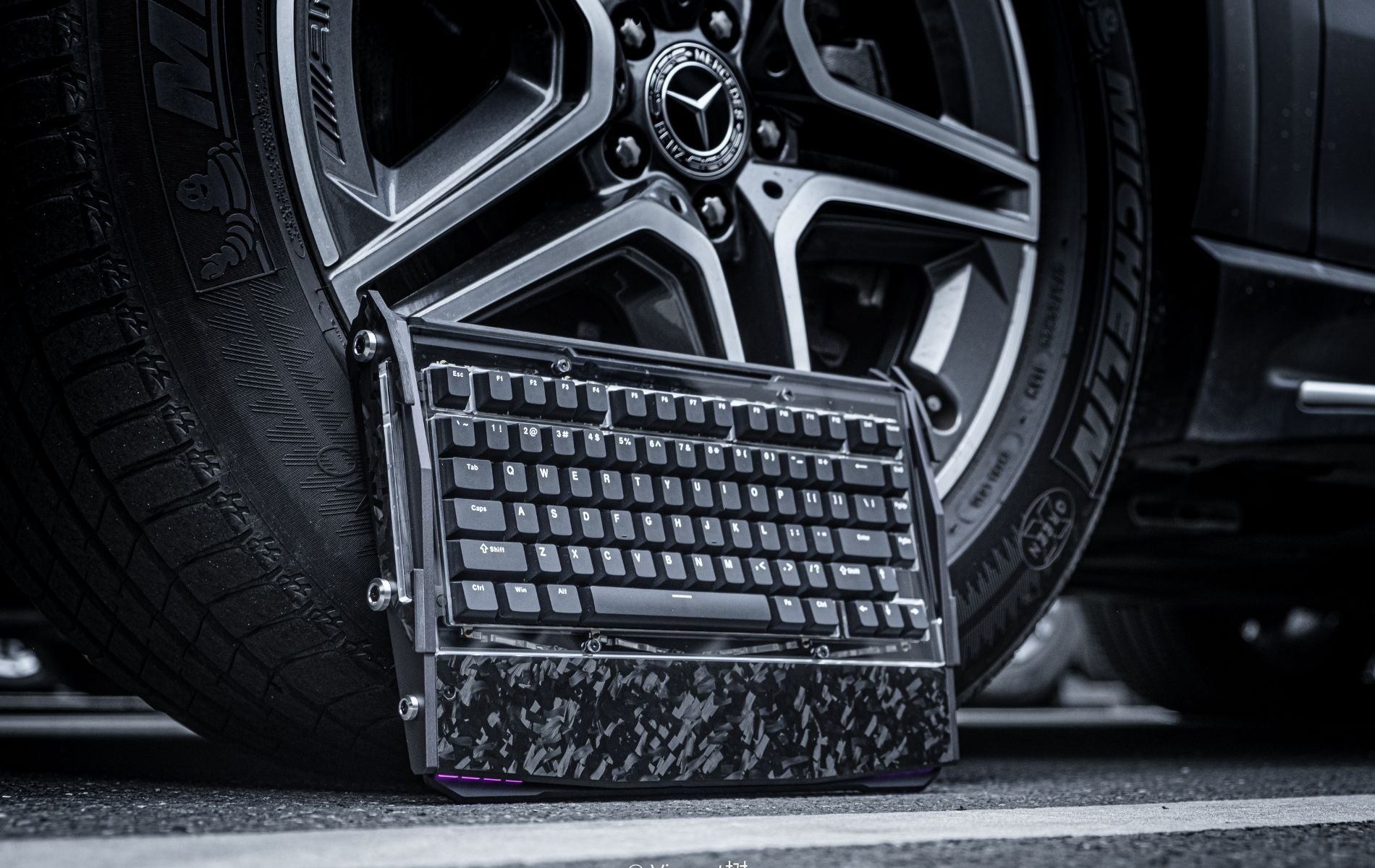

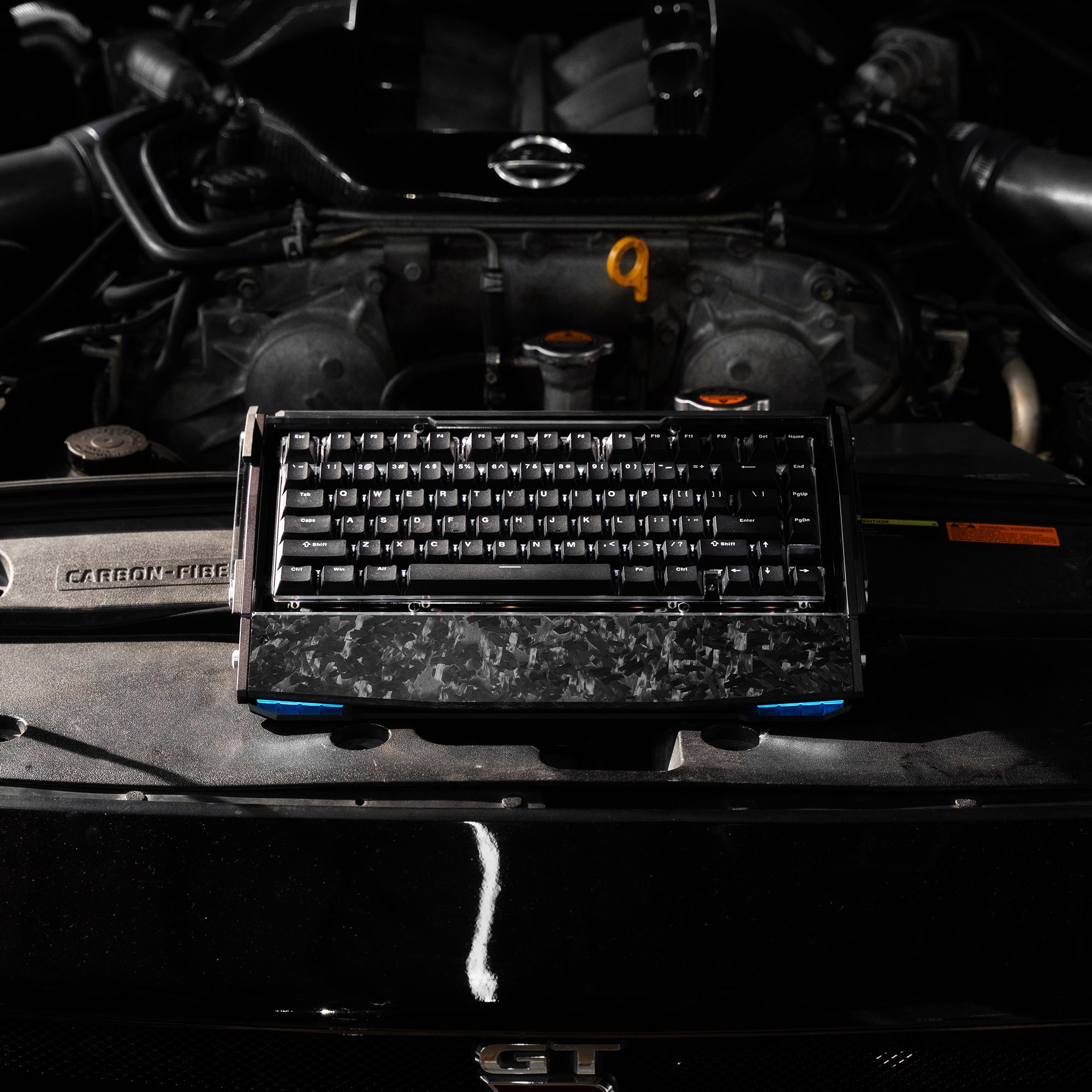

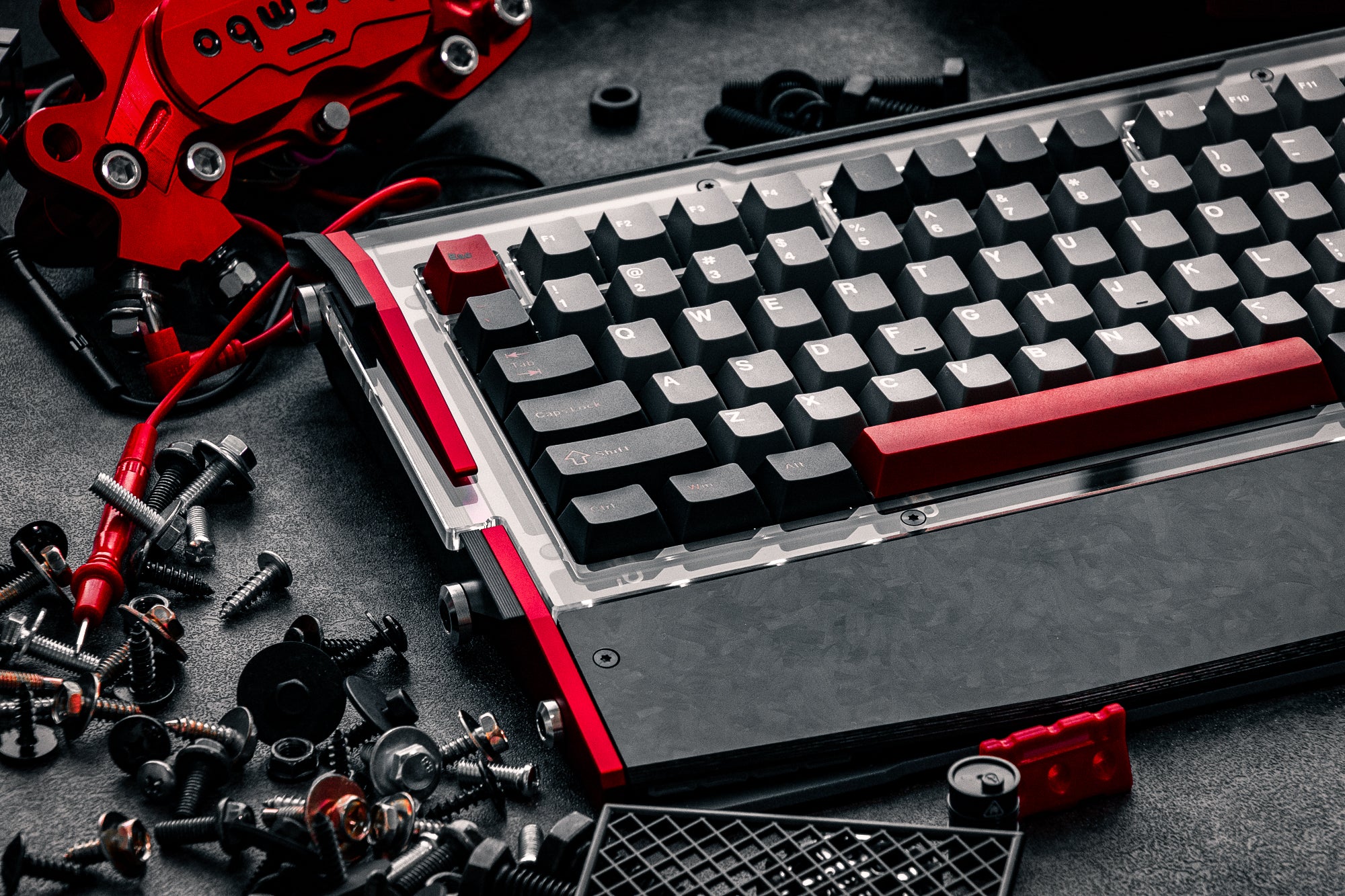

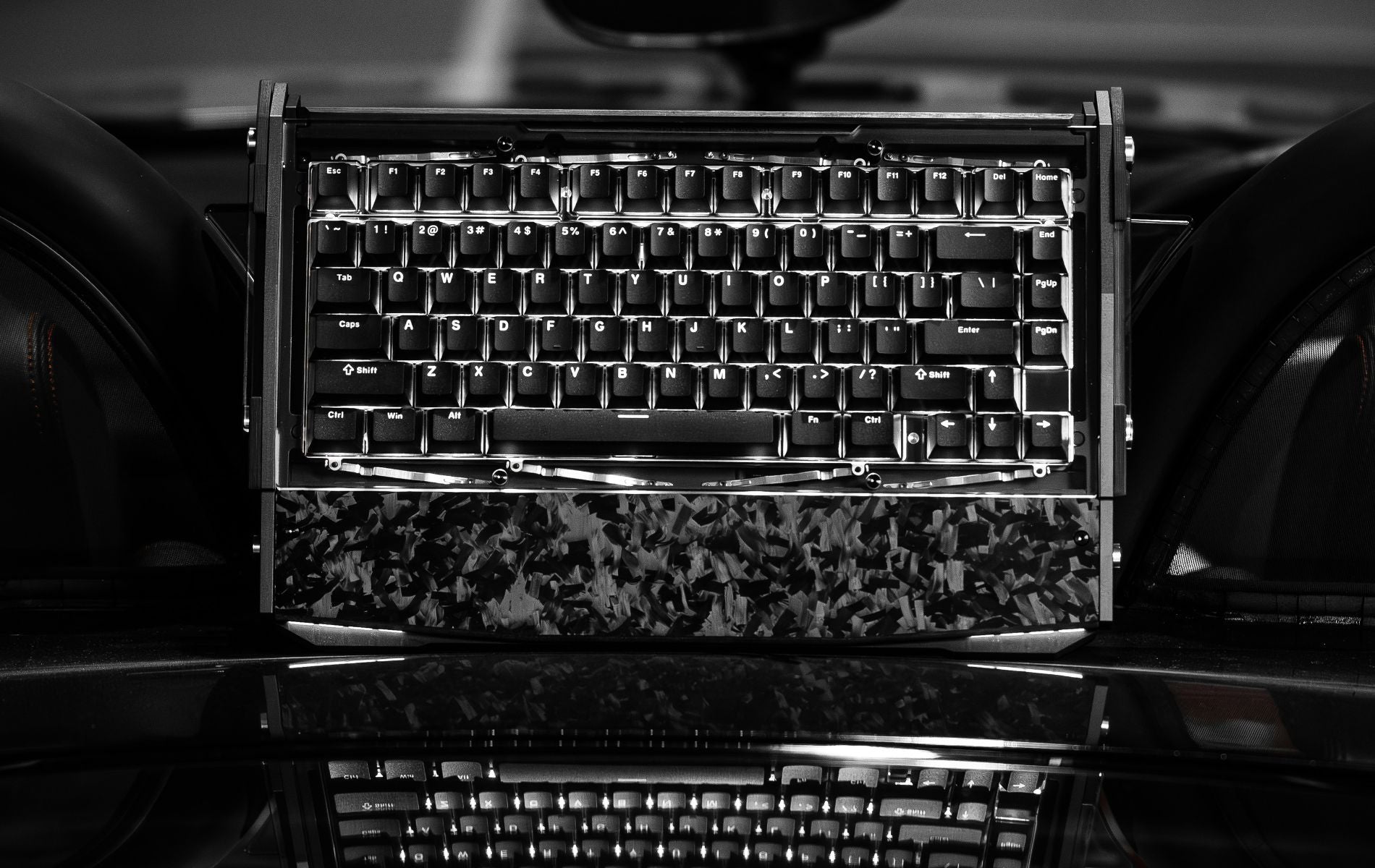

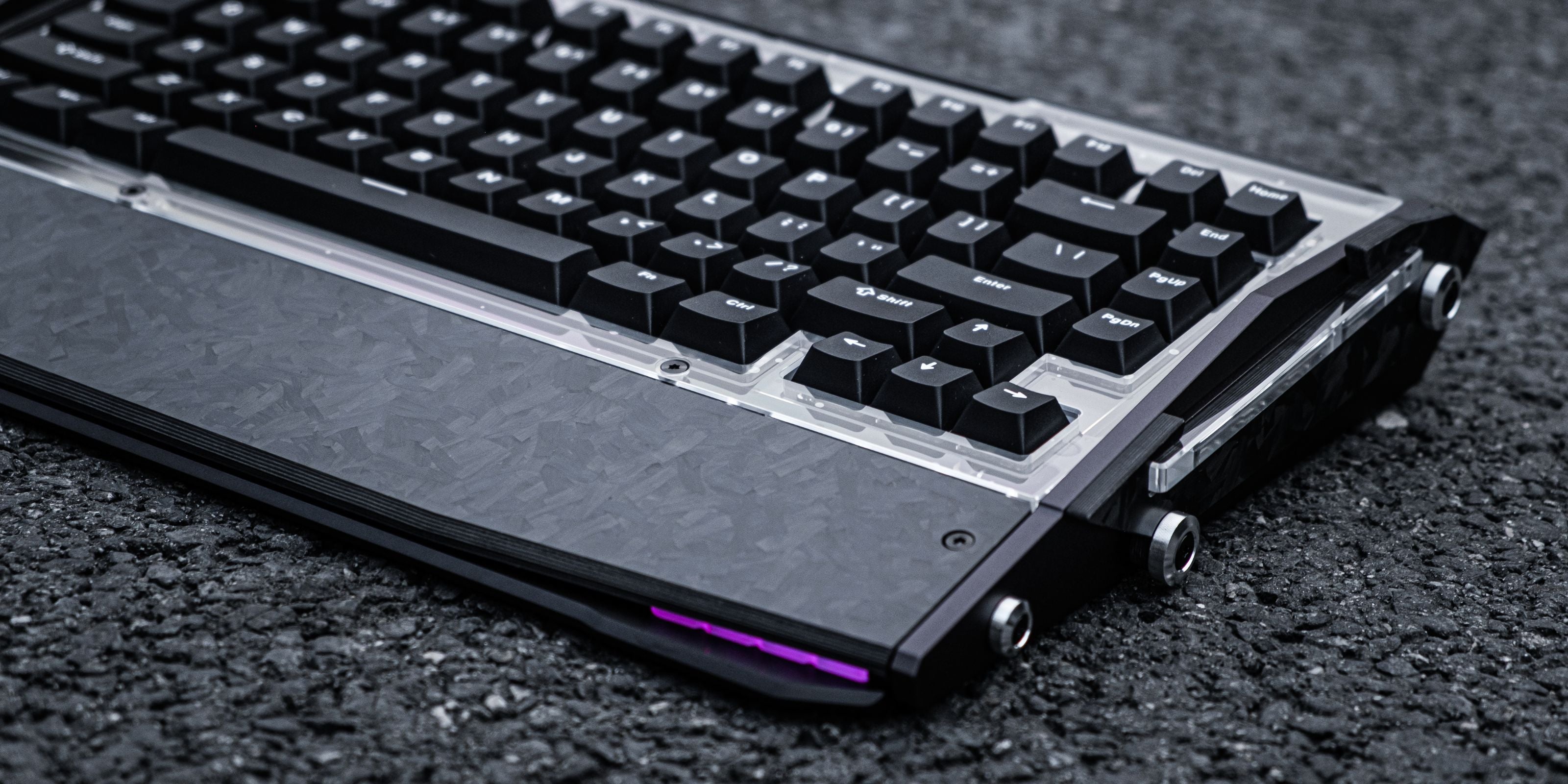

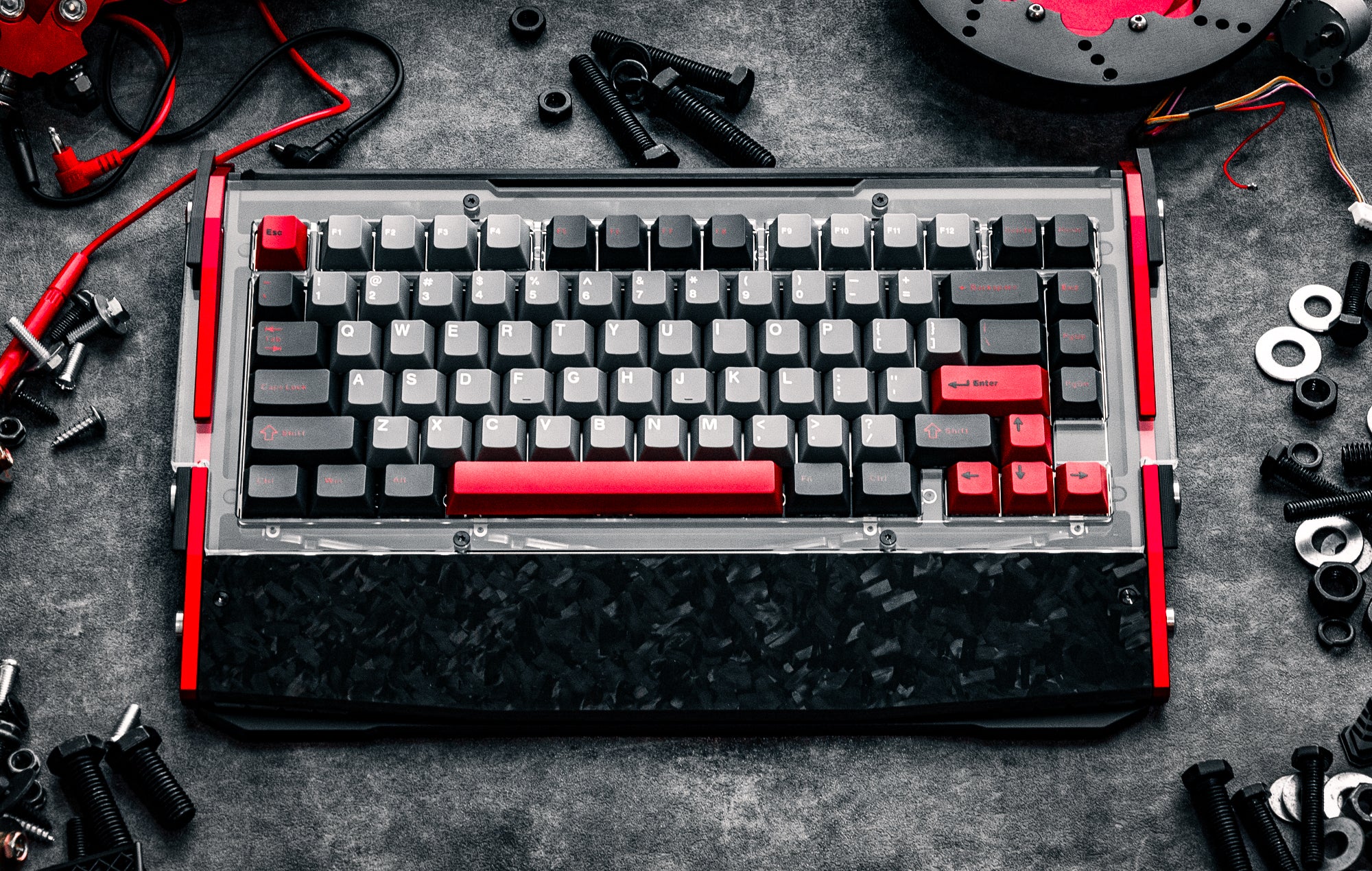

Inspired by the modified all-carbon Lamborghini Aventador - the MANSORY Carbonado - also known as the "Black Diamond".
A unique and fierce shape. This is what we aim to bring to your desk.

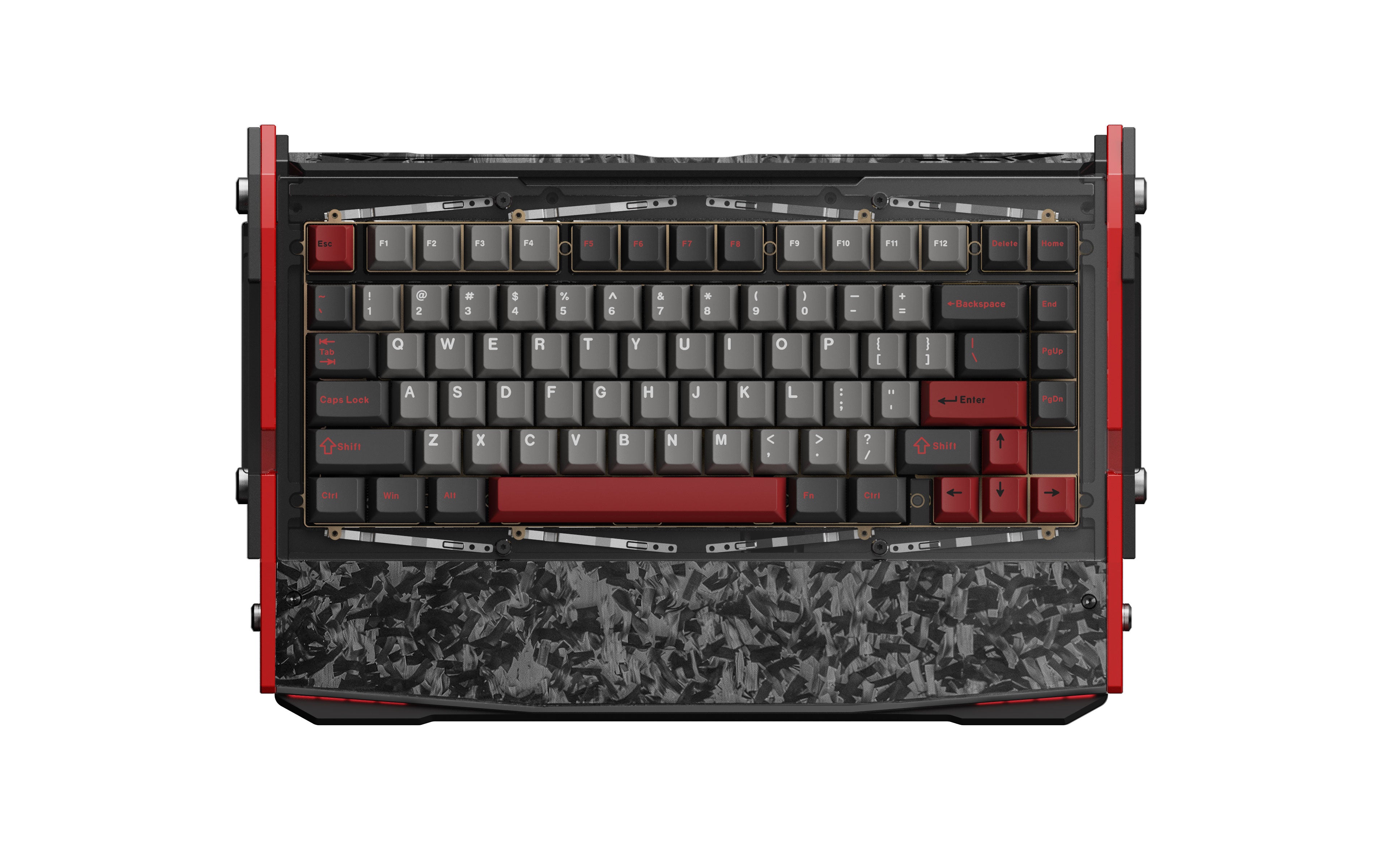

Custom shape. Carbon fiber material. Hand-polished PMMA acrylic with increased hardness exposes the leaf spring internals. And a solid aluminum alloy bottom cover. Just like the rock-hard chassis of a supercar.
Speed, control and stability. The three exact things e-sports players or racing drivers obsess over.

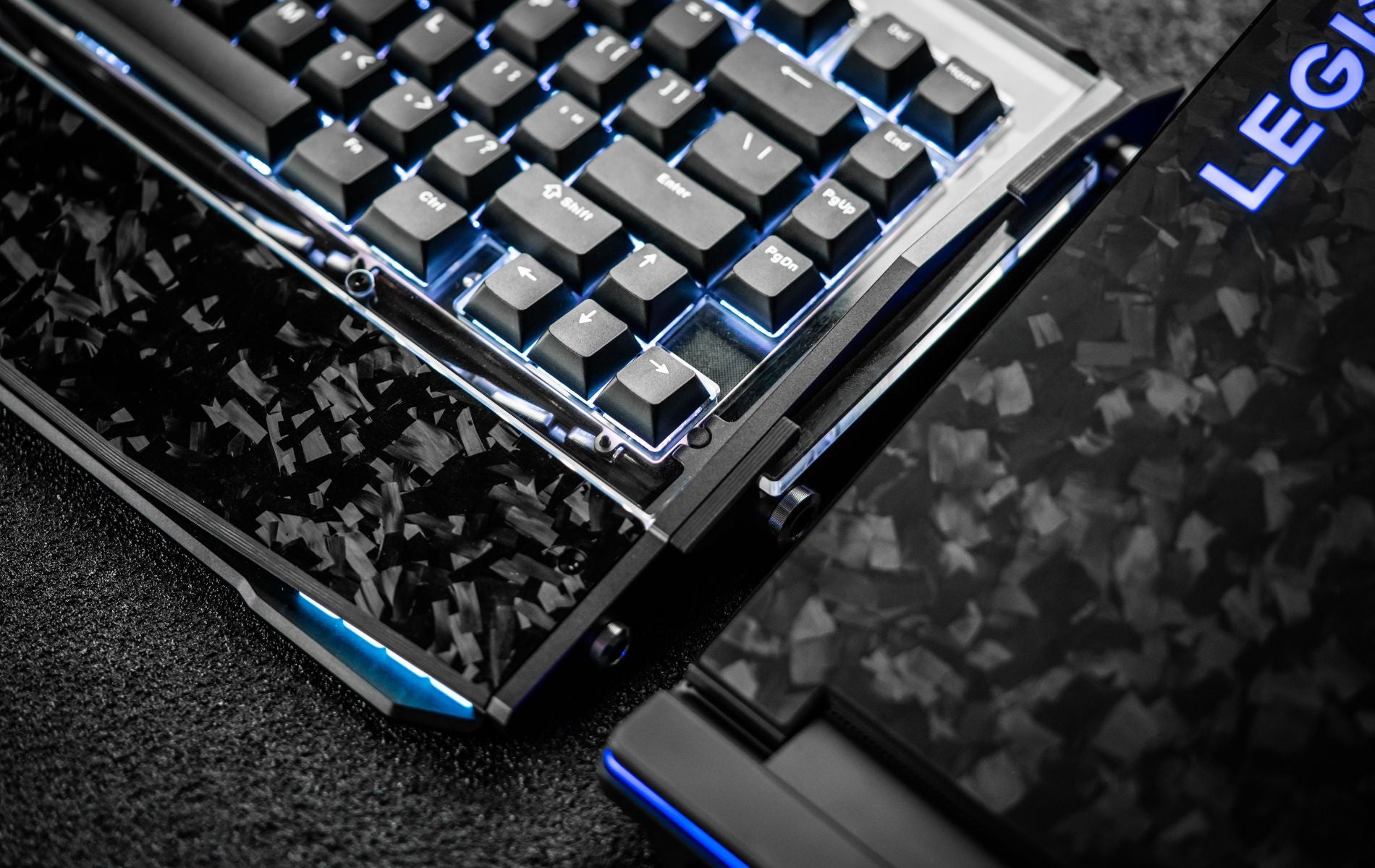

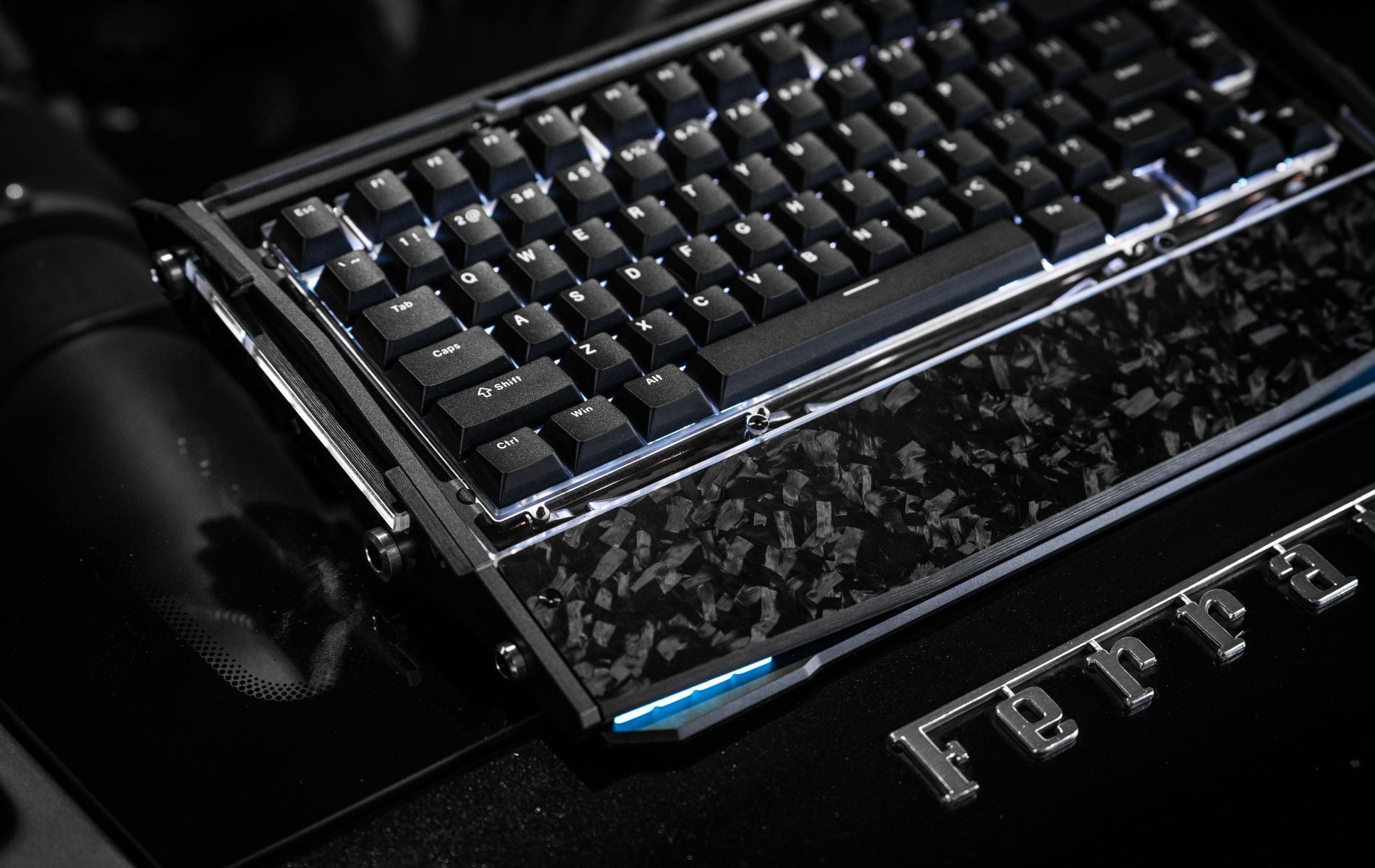

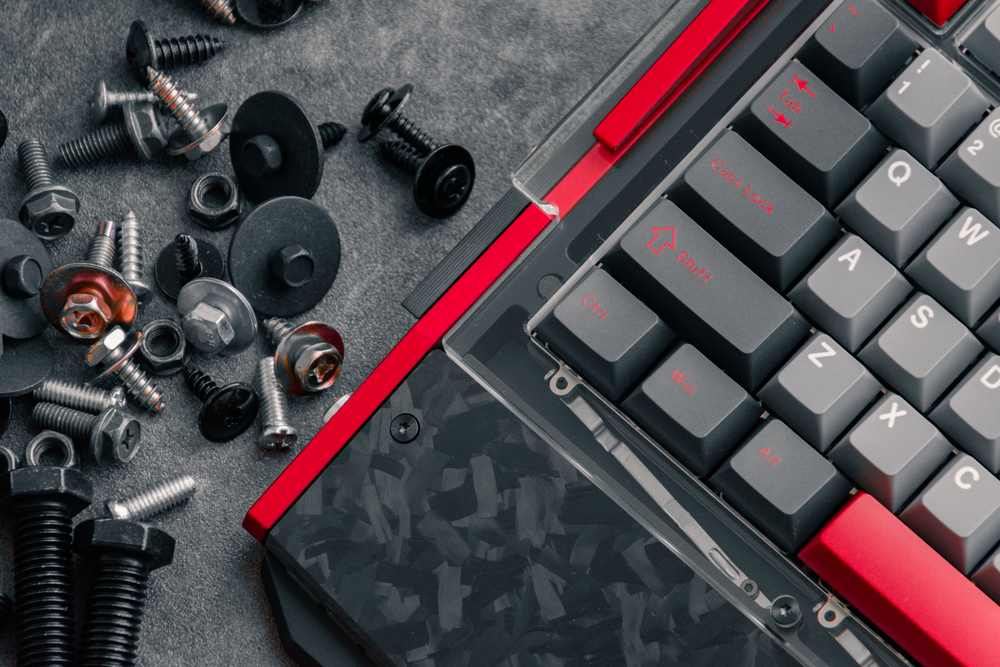

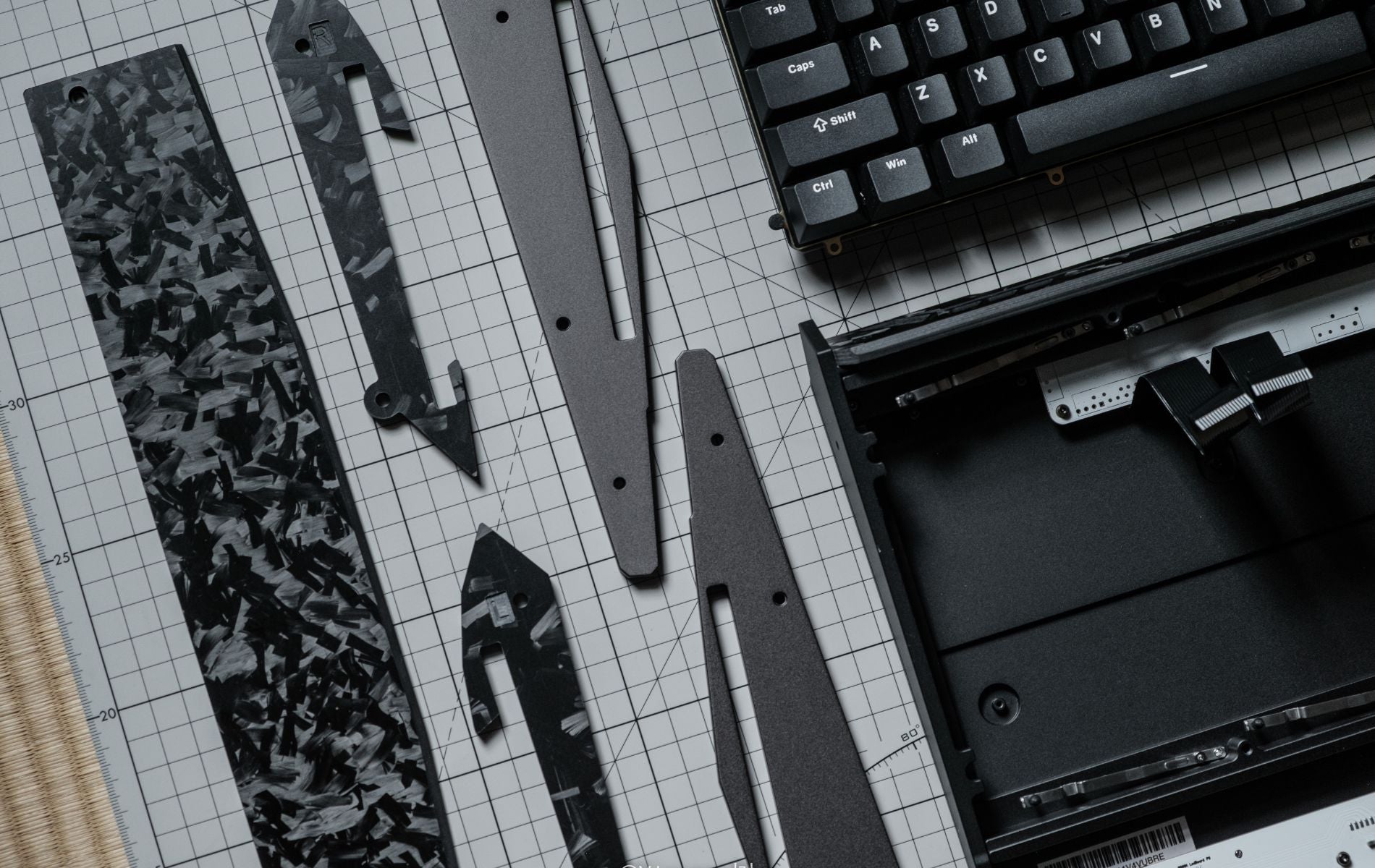

Sturdy forged carbon wrist rest and keyboard body parts. Embodying Black Diamond 75 V2 as a high-performance gaming keyboard.

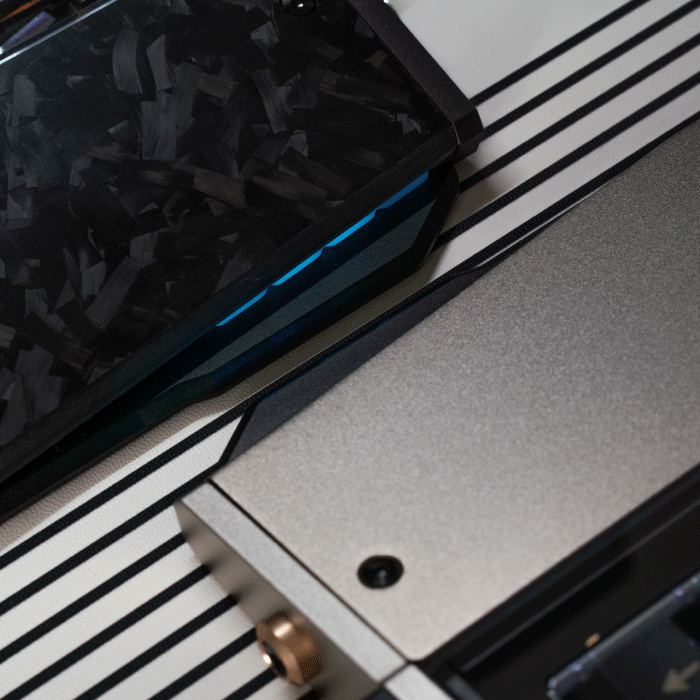

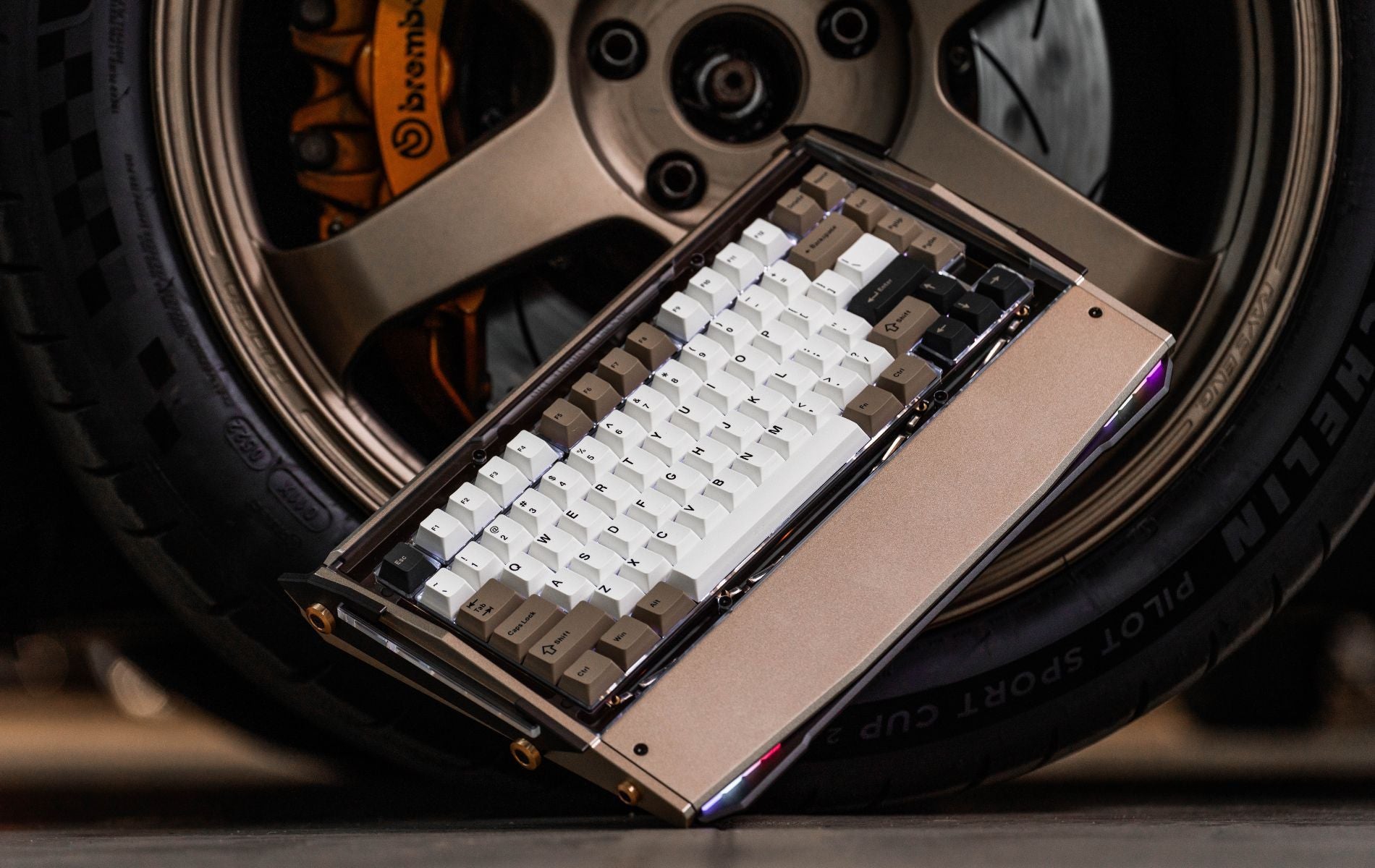

CNC aluminum keyboard frame. Solid materials and advanced workmanship. As stable as the chassis of a supercar.

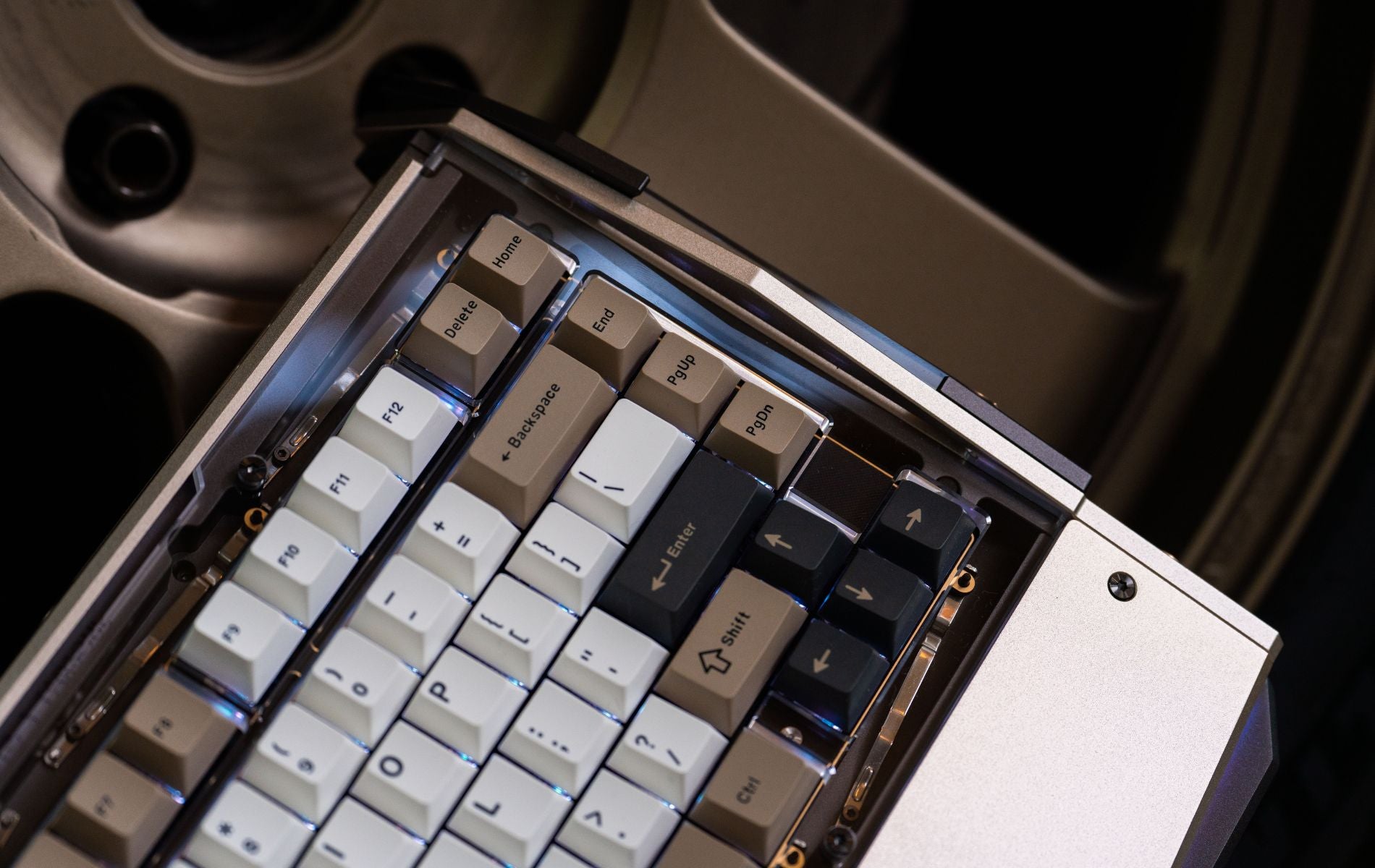

Reinforced highly transparent CNC acrylic top cover. Revealing the leaf spring mount doing its work. Just like a transparent engine cover showing off a supercar's V12 engine.
Complex and three-dimensional shape just like a supercar. Except for the upper cover, all parts are precision CNC machined from aluminum / forged carbon. Anodized for a meticulously solid texture with a perfect look from the inside out.

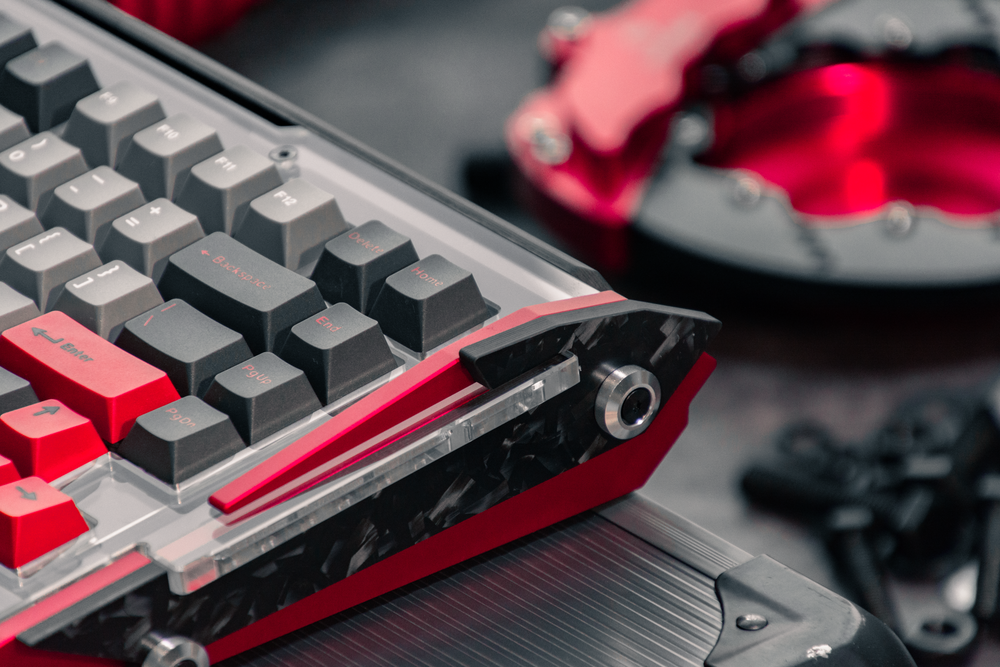

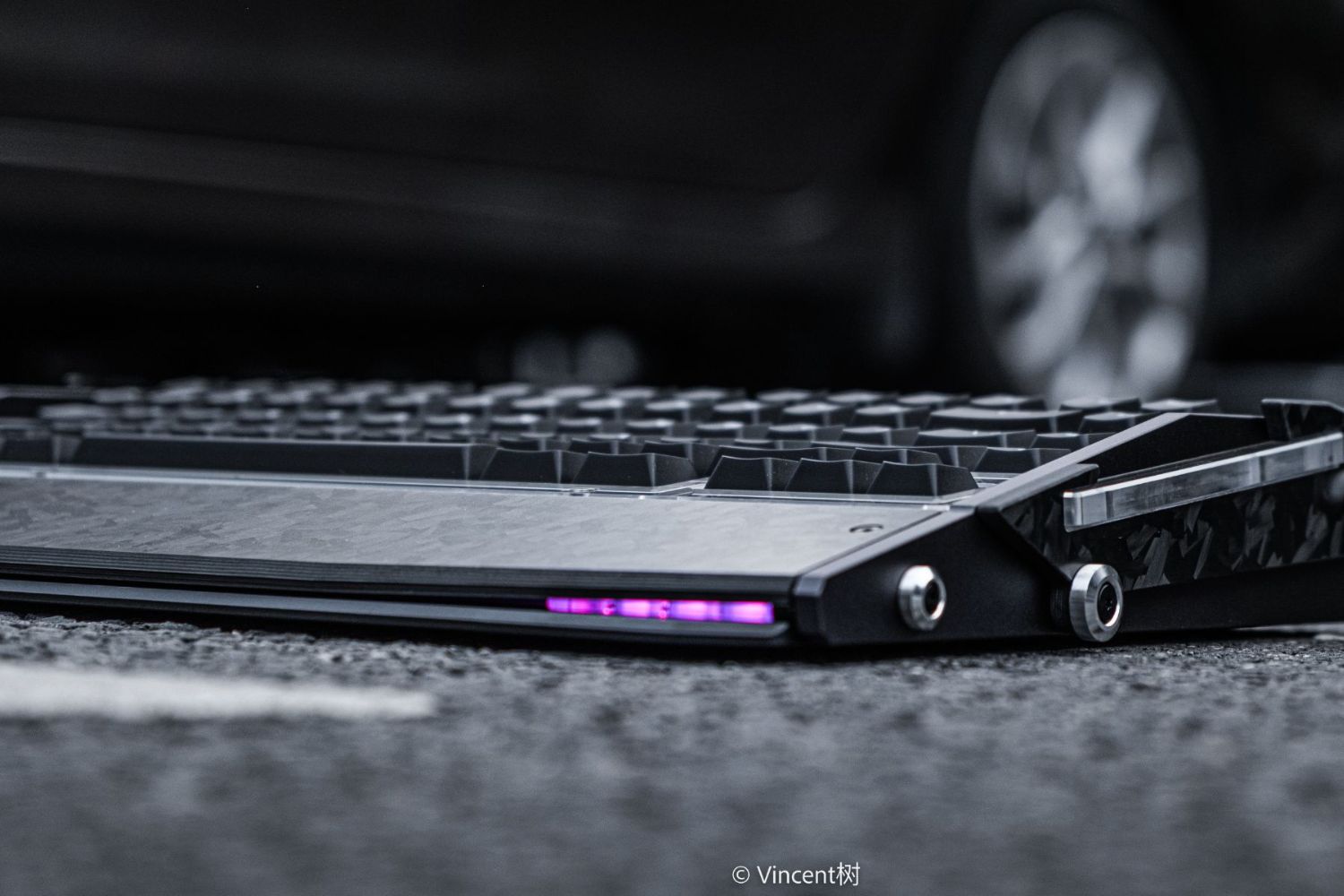

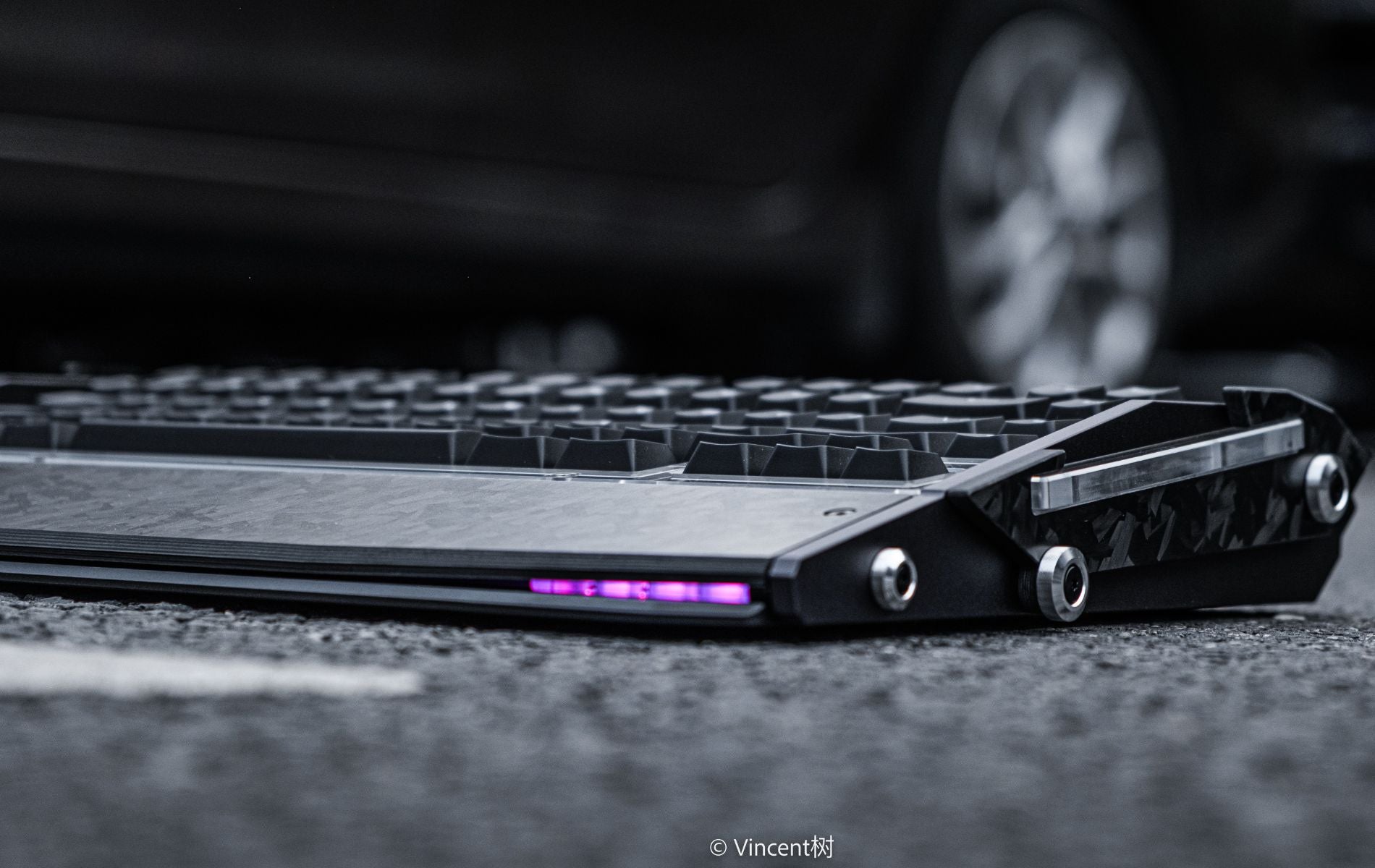

The side keyboard parts representing the side lines of a supercar were upgraded from acrylic to forged carbon / aluminum material. Perfectly in line with the new colorways.

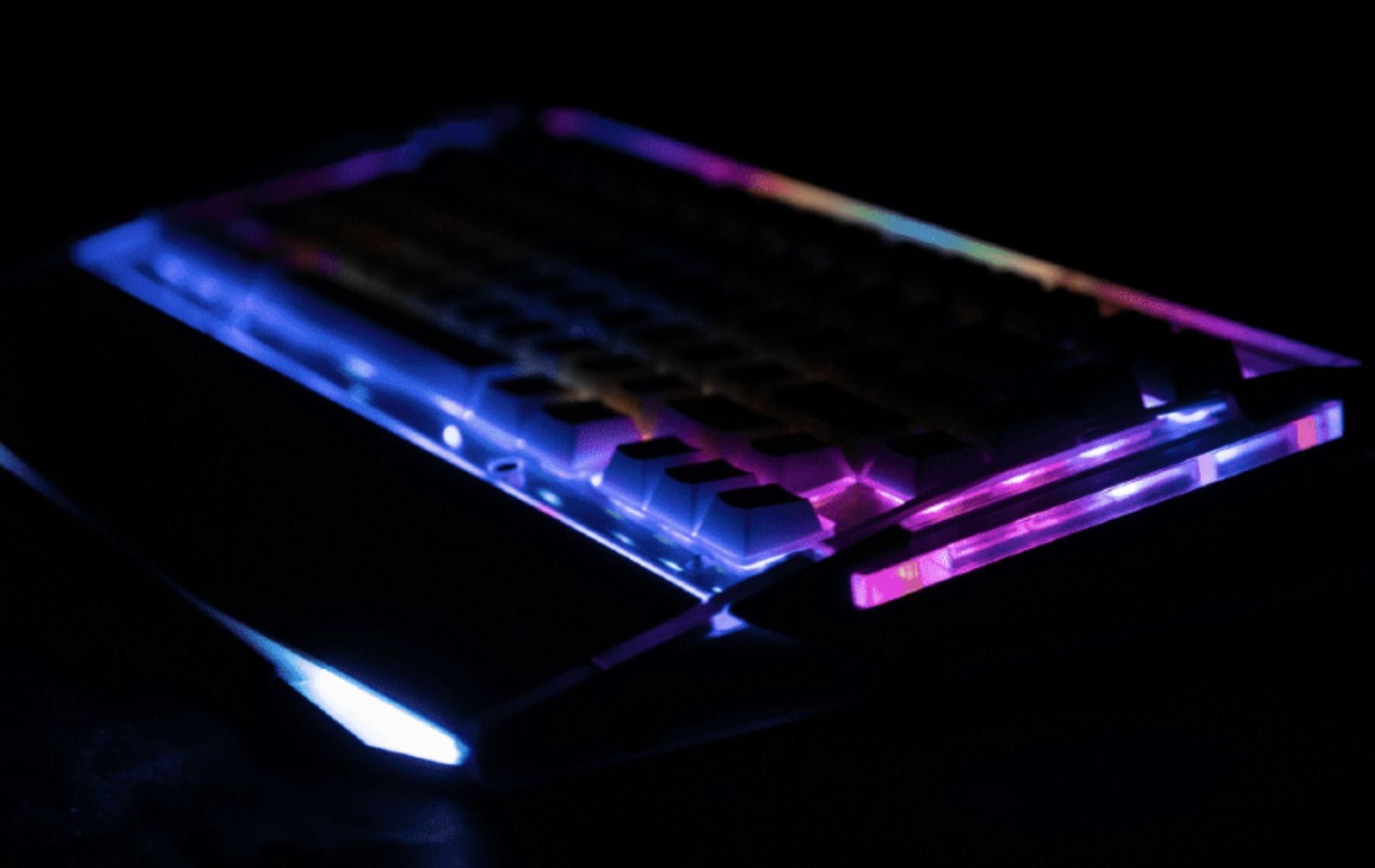

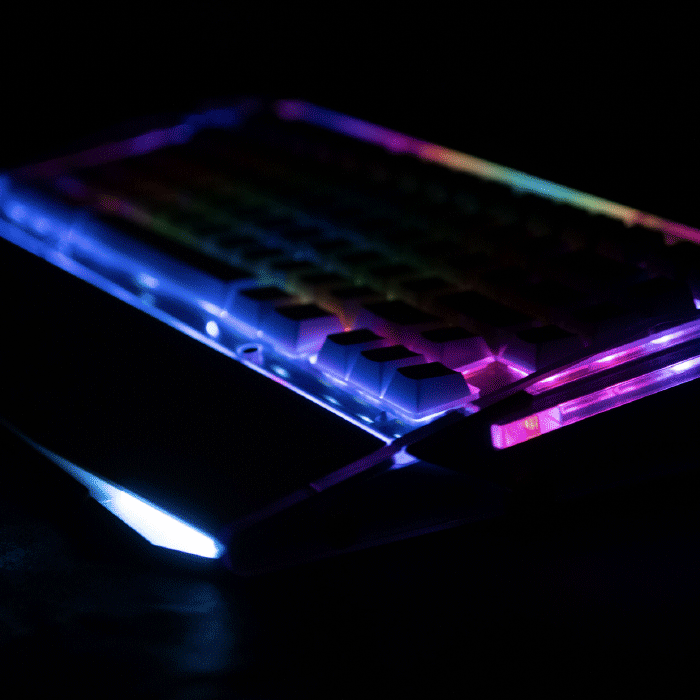

81 in-switch LEDs. 4 programmable RGB LEDs in each corner. Light up the headlights of your Lamborghini on your desk. Powered by Angry Miao.
2.4GHz private protocol from Angry Miao. An end-to-end wireless latency of less than 2ms.
2000Hz scan rate and a 1000Hz polling rate under 2.4G. No matter wired or wireless. Exactly what a professional gamer needs.
Tri-mode wired / Bluetooth / 2.4G connectivity is supported.

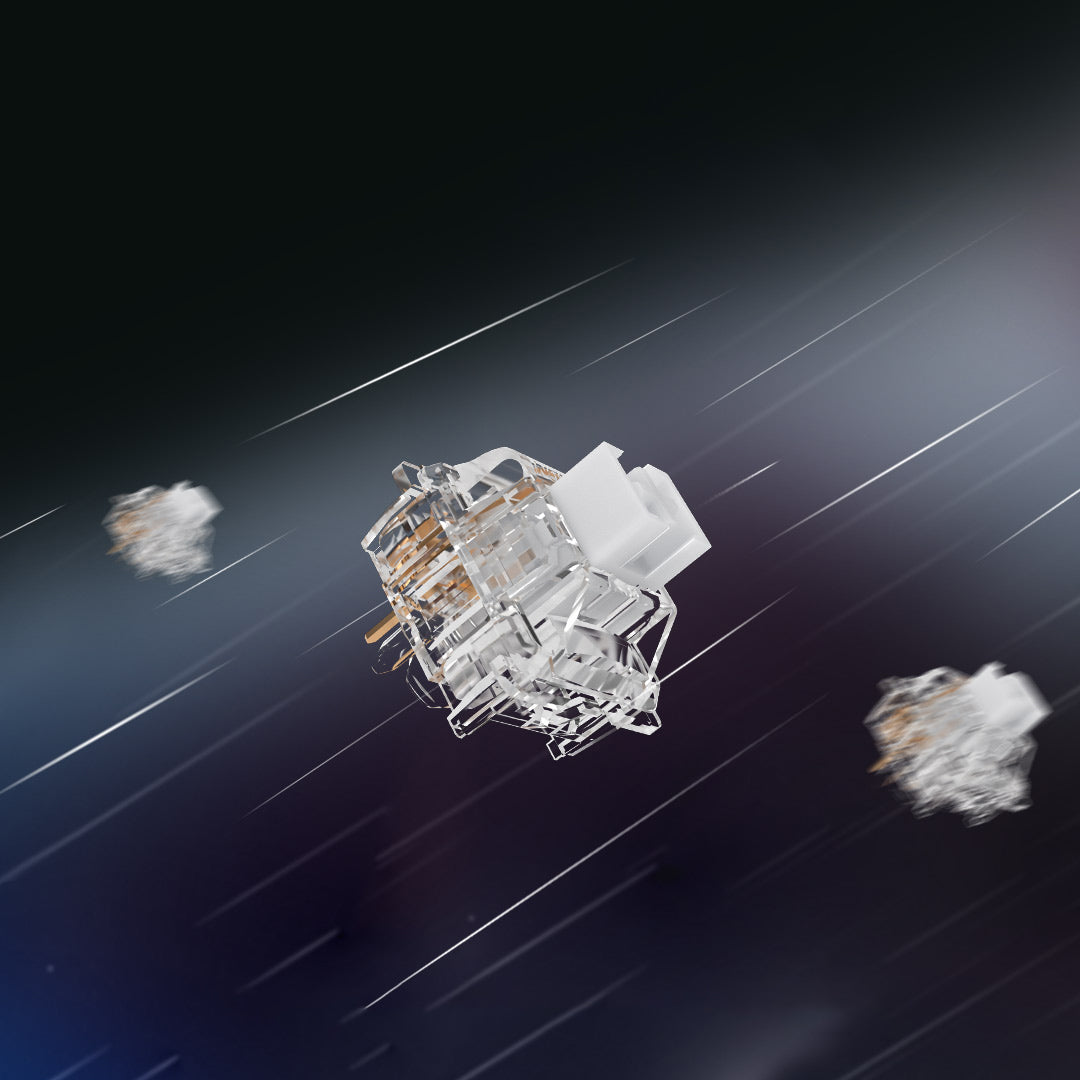

- 1.0mm actuation travel: ultra-fast esports-level response.
- Minimum vibration: high precision with every press.
- POM stem: factory lubed for an excellent feel and sound while gaming.
- Alloy contact points: a lifespan of more than 80 million actuations.
- 40gf actuation force and 45gf bottom-out force: fast response combined with stainless steel leaf springs, making Black Diamond 75 V2 perfect for long gaming sessions.
Even for a gaming keyboard, we don't want to compromise on typing comfort. Stable yet durable. Black Diamond 75 is the world's first gaming keyboard with leaf spring mount. Enjoy more flex with ultimate comfort.

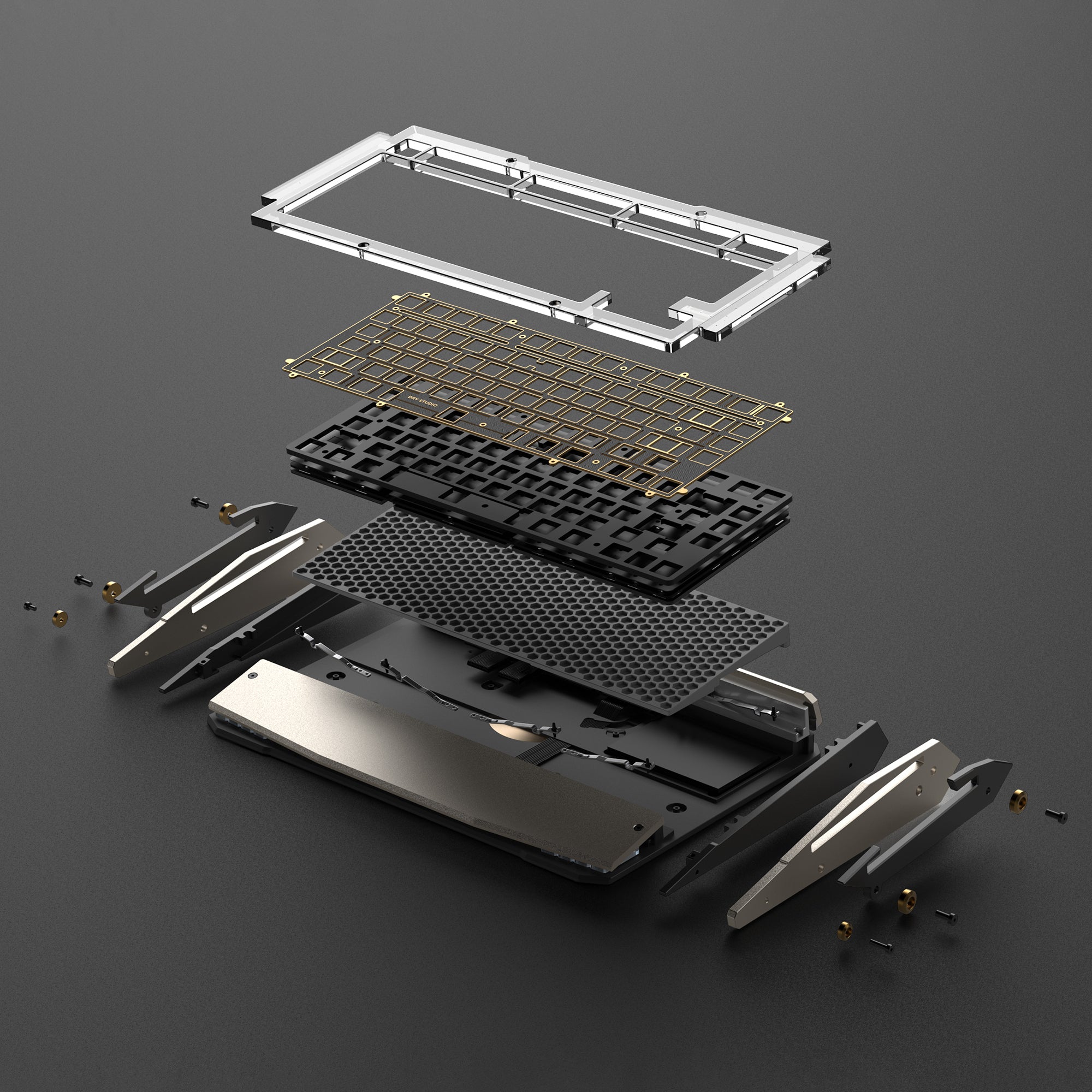

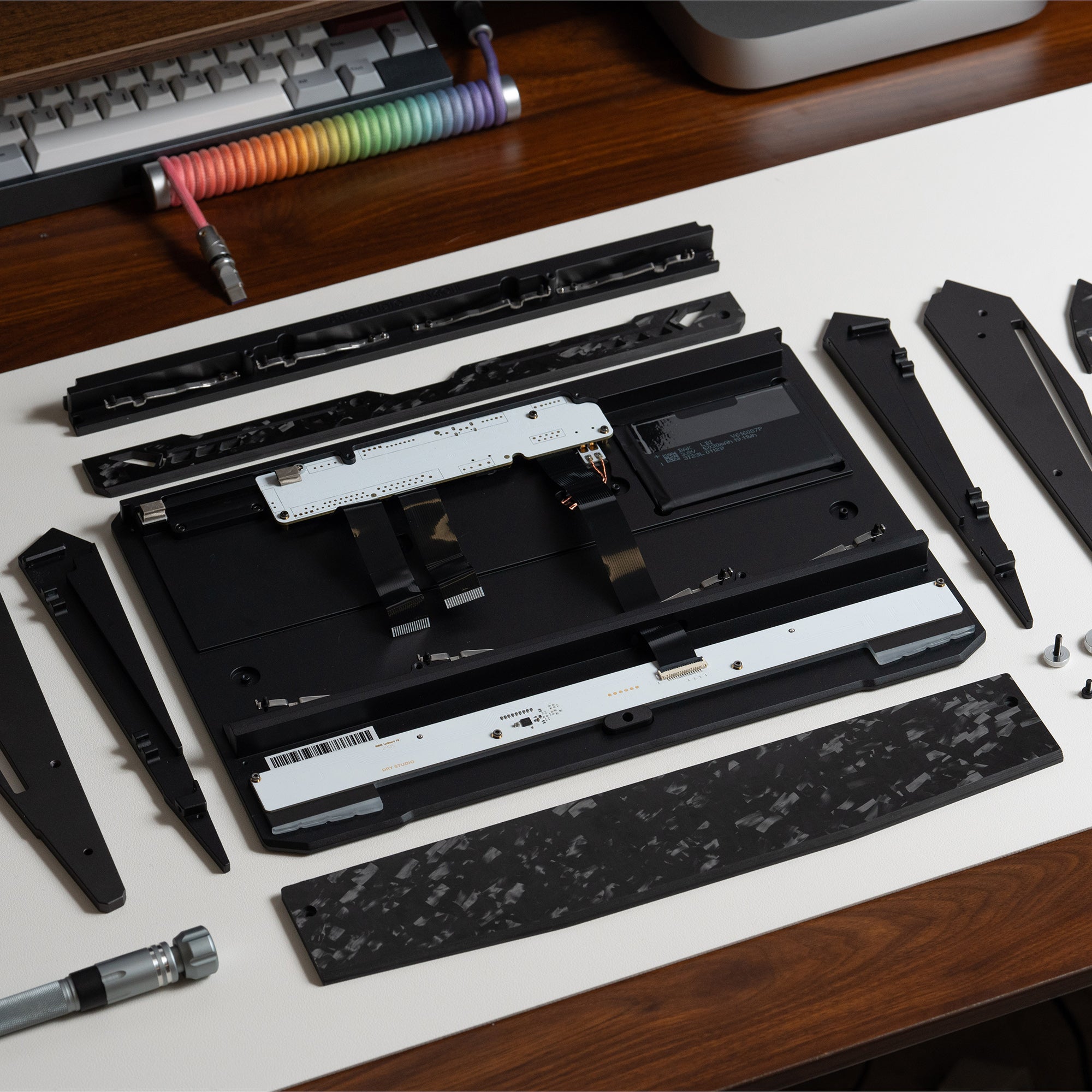

1.6mm hotswap PCB with RGB, FR4 plate, IXPE switch pads, Poron foam and a thickened honeycomb silicone pad. Black Diamond 75 V2 delivers an outstanding typing experience.
- 1.6mm hotswap PCB with RGB. Change switches at will.
- FR4 plate. Balance between typing feel and stability.
- IXPE switch pad. Precision cutouts. Improved typing sound while retaining RGB cutouts.
- Gateron screw-in stabilizers. Silver plated. Pre-lubed. Higher oxidation resistance. Minimal scratchiness.
- PORON foam. Precisely cut. Minimizes scratchy and hollow typing sounds.
- Thickened honeycomb silicone pad. Reduces vibration and hollowness. A more solid feel.

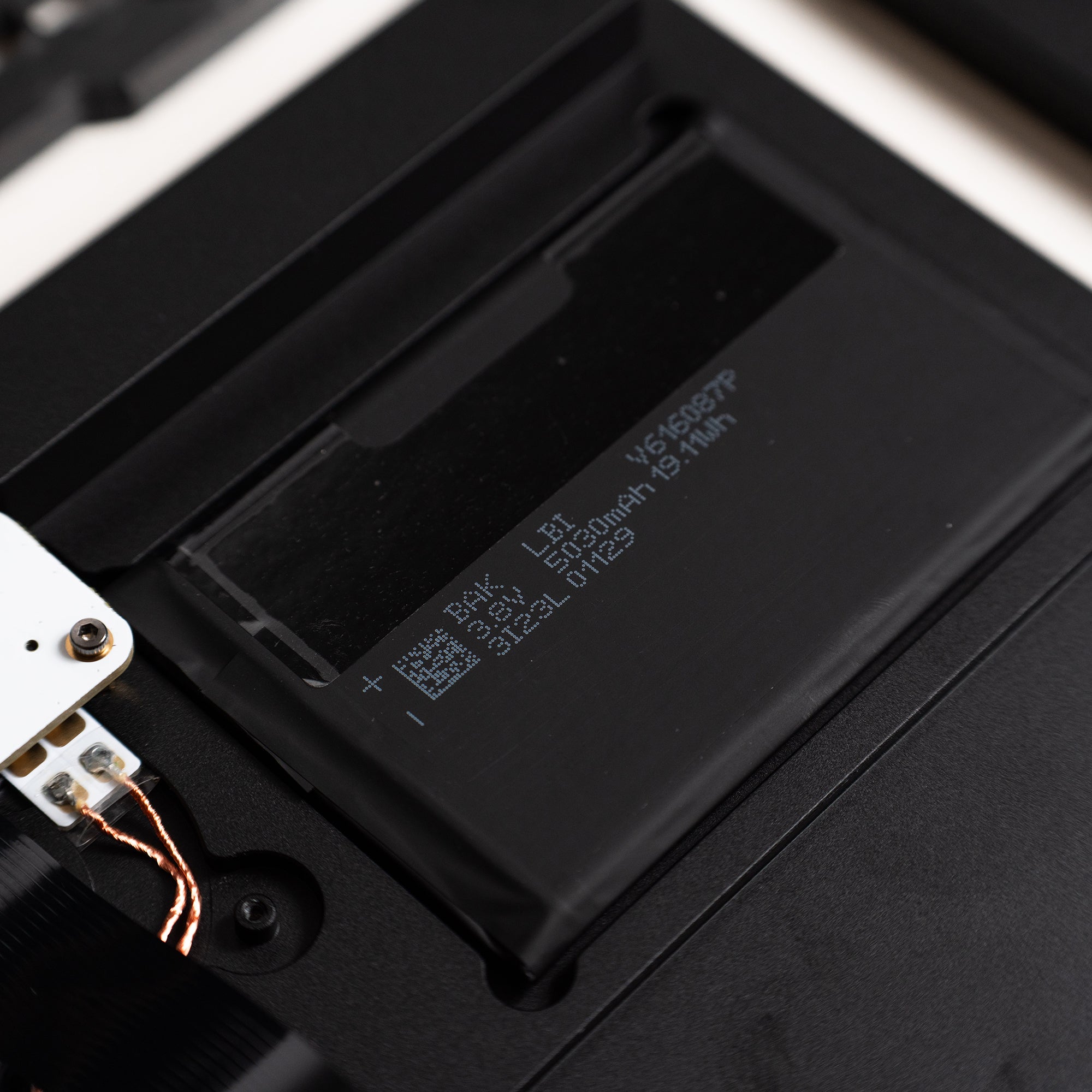

5000mAh capacity. 75 days battery life8 in 2.4G mode.
*With LEDs disabled, 8 hours of daily usage time and 16 hours of daily standby time.
Wireless charging support. Powered by Angry Miao. Perfect in combination with Angry Miao's CYBERMAT.
Inspired by the supercar spoiler aerodynamics. Wrist rest with 7° typing angle built-in for maximum typing comfort. No worrying about front height.

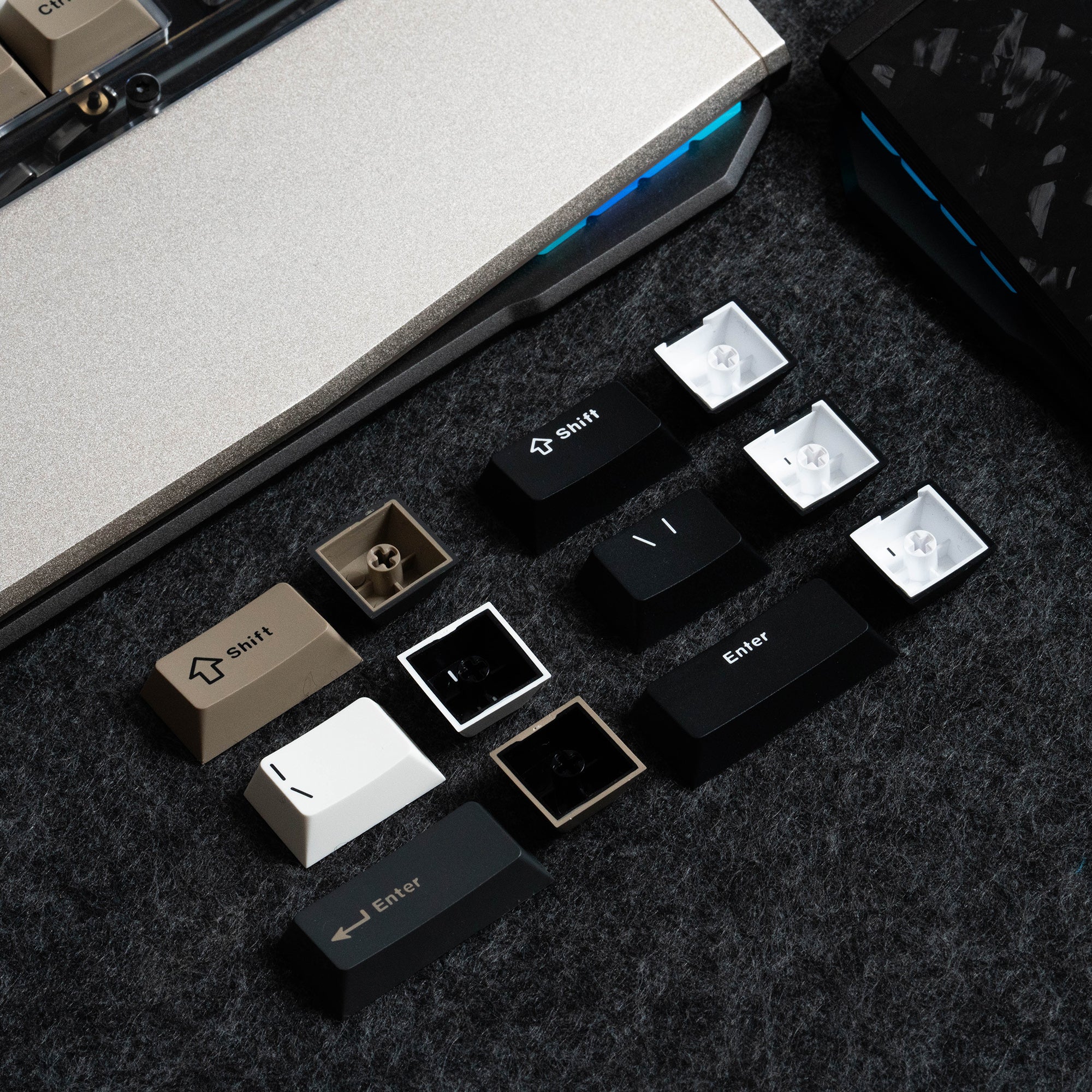

Double shot PBT keycaps included with both colorways. Comfortable to the touch. Won't get smudgy or wear off.
Inspired by the modified all-carbon Lamborghini Aventador - the MANSORY Carbonado - also known as the "Black Diamond".
A unique and fierce shape. This is what we aim to bring to your desk.
Custom shape. Carbon fiber material. Hand-polished PMMA acrylic with increased hardness exposes the leaf spring internals. And a solid aluminum alloy bottom cover. Just like the rock-hard chassis of a supercar.
Speed, control and stability. The three exact things e-sports players or racing drivers obsess over.
Sturdy forged carbon wrist rest and keyboard body parts. Embodying Black Diamond 75 V2 as a high-performance gaming keyboard.
CNC aluminum keyboard frame. Solid materials and advanced workmanship. As stable as the chassis of a supercar.
Reinforced highly transparent CNC acrylic top cover. Revealing the leaf spring mount doing its work. Just like a transparent engine cover showing off a supercar's V12 engine.
Complex and three-dimensional shape just like a supercar. Except for the upper cover, all parts are precision CNC machined from aluminum / forged carbon. Anodized for a meticulously solid texture with a perfect look from the inside out.
The side keyboard parts representing the side lines of a supercar were upgraded from acrylic to forged carbon / aluminum material. Perfectly in line with the new colorways.
81 in-switch LEDs. 4 programmable RGB LEDs in each corner. Light up the headlights of your Lamborghini on your desk. Powered by Angry Miao.
2.4GHz private protocol from Angry Miao. An end-to-end wireless latency of less than 2ms.
2000Hz scan rate and a 1000Hz polling rate under 2.4G. No matter wired or wireless. Exactly what a professional gamer needs.
Tri-mode wired / Bluetooth / 2.4G connectivity is supported.
- 1.0mm actuation travel: ultra-fast esports-level response.
- Minimum vibration: high precision with every press.
- POM stem: factory lubed for an excellent feel and sound while gaming.
- Alloy contact points: a lifespan of more than 80 million actuations.
- 40gf actuation force and 45gf bottom-out force: fast response combined with stainless steel leaf springs, making Black Diamond 75 V2 perfect for long gaming sessions.
Even for a gaming keyboard, we don't want to compromise on typing comfort. Stable yet durable. Black Diamond 75 is the world's first gaming keyboard with leaf spring mount. Enjoy more flex with ultimate comfort.
1.6mm hotswap PCB with RGB, FR4 plate, IXPE switch pads, Poron foam and a thickened honeycomb silicone pad. Black Diamond 75 V2 delivers an outstanding typing experience.
- 1.6mm hotswap PCB with RGB. Change switches at will.
- FR4 plate. Balance between typing feel and stability.
- IXPE switch pad. Precision cutouts. Improved typing sound while retaining RGB cutouts.
- Gateron screw-in stabilizers. Silver plated. Pre-lubed. Higher oxidation resistance. Minimal scratchiness.
- PORON foam. Precisely cut. Minimizes scratchy and hollow typing sounds.
- Thickened honeycomb silicone pad. Reduces vibration and hollowness. A more solid feel.
5000mAh capacity. 75 days battery life8 in 2.4G mode.
*With LEDs disabled, 8 hours of daily usage time and 16 hours of daily standby time.
Wireless charging support. Powered by Angry Miao. Perfect in combination with Angry Miao's CYBERMAT.
Inspired by the supercar spoiler aerodynamics. Wrist rest with 7° typing angle built-in for maximum typing comfort. No worrying about front height.
Double shot PBT keycaps included with both colorways. Comfortable to the touch. Won't get smudgy or wear off.
The Black Diamond 75's build quality and ornate construction feel really impressive for this kind of money.
It's unique, beautifully designed, has a sound, and feels usually reserved for group buy keyboards.
At this price, there really isn't a board on the market that has the same design factor and build quality.
Sir Cilantro
It truly feels tailor made to fit gaming and keyboard enthusiasts alike.
Everything from the beautiful design to the unique
rapid gaming switches had me all in on this board.
Gaming Tech
I was not expecting the sound to be this good.
I gamed a lot with this board, mainly fps titles
where movement is super crucial, both wired and
wireless mode 0 issues I had, it's been a very
pleasant experience.
jeff.chow93
The low latency was something I have been in search for, especially for FPS gaming.
Using the dongle really is faster than on wired.
Extremely noticeable when moving in FPS games,
especially in Valorant.

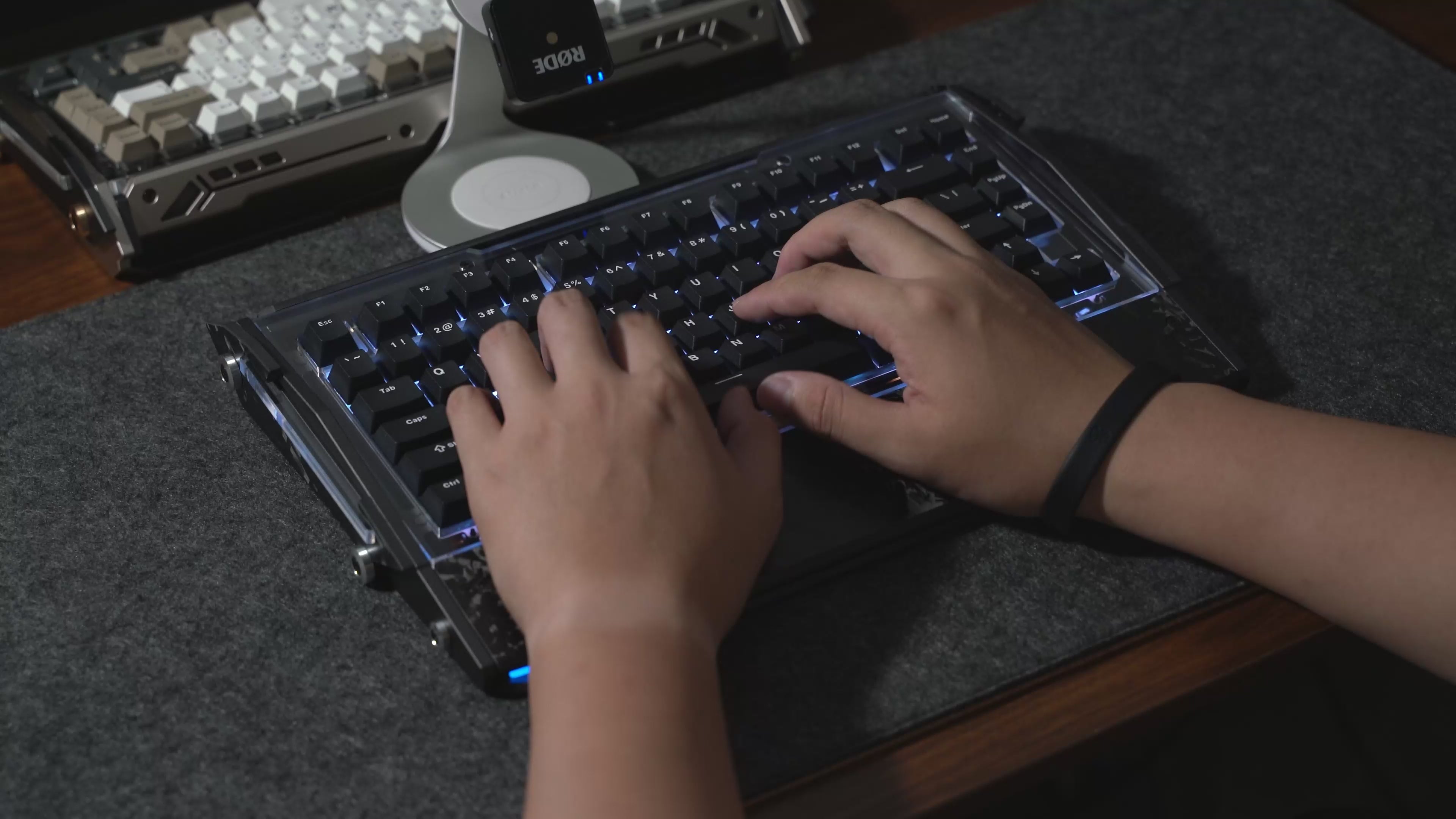

Typing Test
Product Specifications
21 x 13.5 x 5 inches
Carbon 2.8kg (±0.1), Mithril 3.0kg (±0.1)
7°
Leaf spring mount
No additional drivers required, supports N-key rollover
Configurable on Windows/macOS via AM Master
Hot-swappable
Wired, Bluetooth 5.1, wireless 2.4G
Power indicator, connection status indicator and Caps Lock indicator are located on the mainboard
USB 2.0, Type-C, supports USB-C to USB-C
Lithium polymer 5000mAh
Wireless charging 5W, starts charging automatically when battery power drops below 85% and stops at 100%
Advance 3W, Standard 2.5W
Join the our Discord group to hang out with other community members and get exclusive updates.
Notification

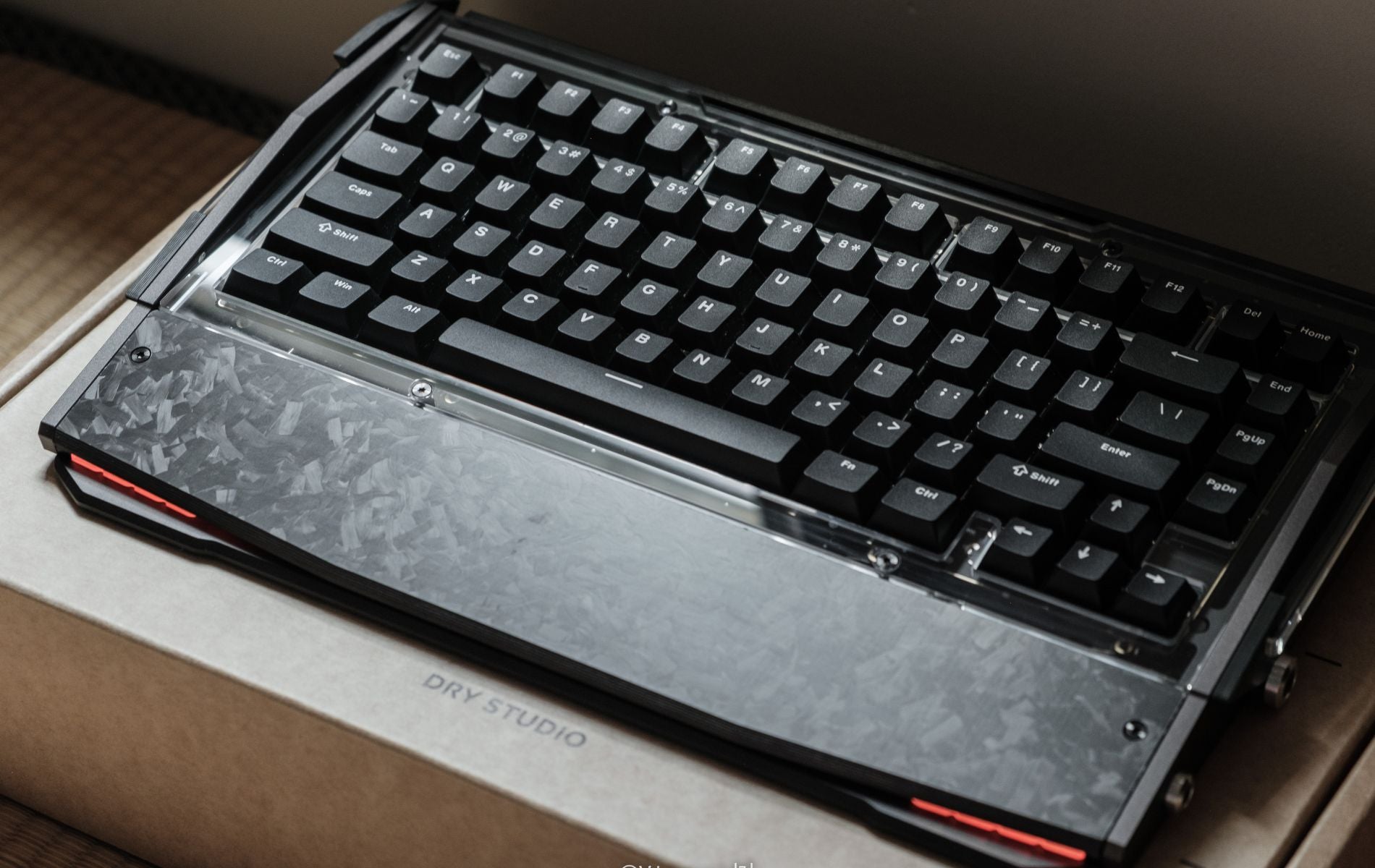

- The keyboard comes in an environmentally friendly carton box and includes a digital manual. Tools and carrying case are not included.
- Do not wipe acrylic surfaces with alcohol or ethanol-based solutions. The acrylic surfaces my crack.
- The 2.4G dongle housing has slight molding marks as a result of its molding process. This is considered normal.
- Slight discoloration, scratches, and color differences on the inside of the keyboard, in addition to the following minor exterior flaws that do not affect normal use, are considered normal and are not under the scope of after-sales.The keyboard comes in an environmentally friendly carton box and includes a digital manual. Tools and carrying case are not included.
- Do not wipe acrylic surfaces with alcohol or ethanol-based solutions. The acrylic surfaces my crack.
- The 2.4G dongle housing has slight molding marks as a result of its molding process. This is considered normal.
- Slight discoloration, scratches, and color differences on the inside of the keyboard, in addition to the following minor exterior flaws that do not affect normal use, are considered normal and are not under the scope of after-sales.

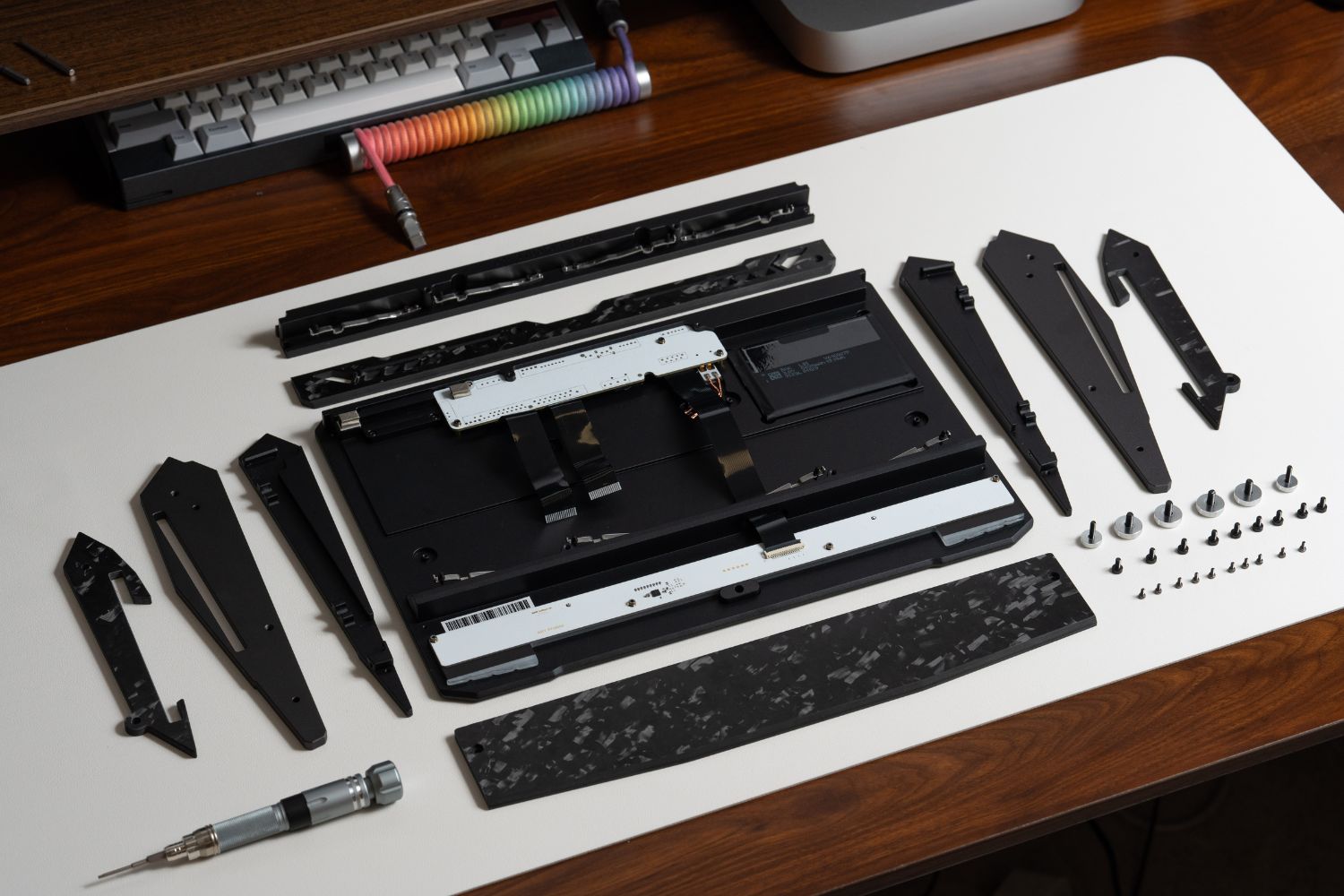

Disassembly instructions
- All keyboards come as Bundle and do not require any disassembly upon receipt. Due to its unique shape and structure, it requires specific steps when disassembling and assembling the keyboard. Please follow the official Build Guide video.
- When replacing switches, we recommend to remove the PCB assembly from the keyboard body and install the switches with gentle force. During installation, ensure that the feet of the switches are not bent.
- If you encounter a situation where a switch cannot be inserted, please adjust the angle of the switch and make sure that the feet of the switch are straight. Avoid using excessive force, as this may cause damage to the switch socket or even the PCB.
FAQ
Do I need to pay tax & customs?
Import duties, taxes, and charges are not included in the item price. Please check with your country's customs office for the details.
*In case of non-quality problems, the user is responsible for the customs and shipping costs of the return.
Does acrylic get scratched easily?
We use hardened PMMA acrylic, which has a surface hardness of 3H for good scratch resistance. Every piece of acrylic on the Black Diamond 75 is polished by hand.
Please do not wipe the acrylic surfaces using alcohol, as to avoid damage to the acrylic surfaces.
Is Black Diamond 75 Carbon crafted from real carbon fiber?
Yes, Black Diamond 75 Carbon is crafted from real carbon fiber. It is not a carbon print or wrap. Multi-layer extrusion is used in the manufacturing process.
Carbon utilizes carbon fiber and high-transparency acrylic case parts. The internal frame is made from black anodized aluminum alloy.
Are DR Rapid Ice switches linear or tactile?
DR Rapid Ice are linear switches with an actuation travel of 1.0mm, an actuation force of 40gf and a bottom-out force of 45gf.
Combined with stainless steel leaf springs for improved finger dampening, there's less strain on your fingers during long gaming sessions.
Can you change the color of the dual headlight RGB of the Advance Version?
Yes, this is possible.
Is N-key rollover supported?
Yes. No additional drivers are required.

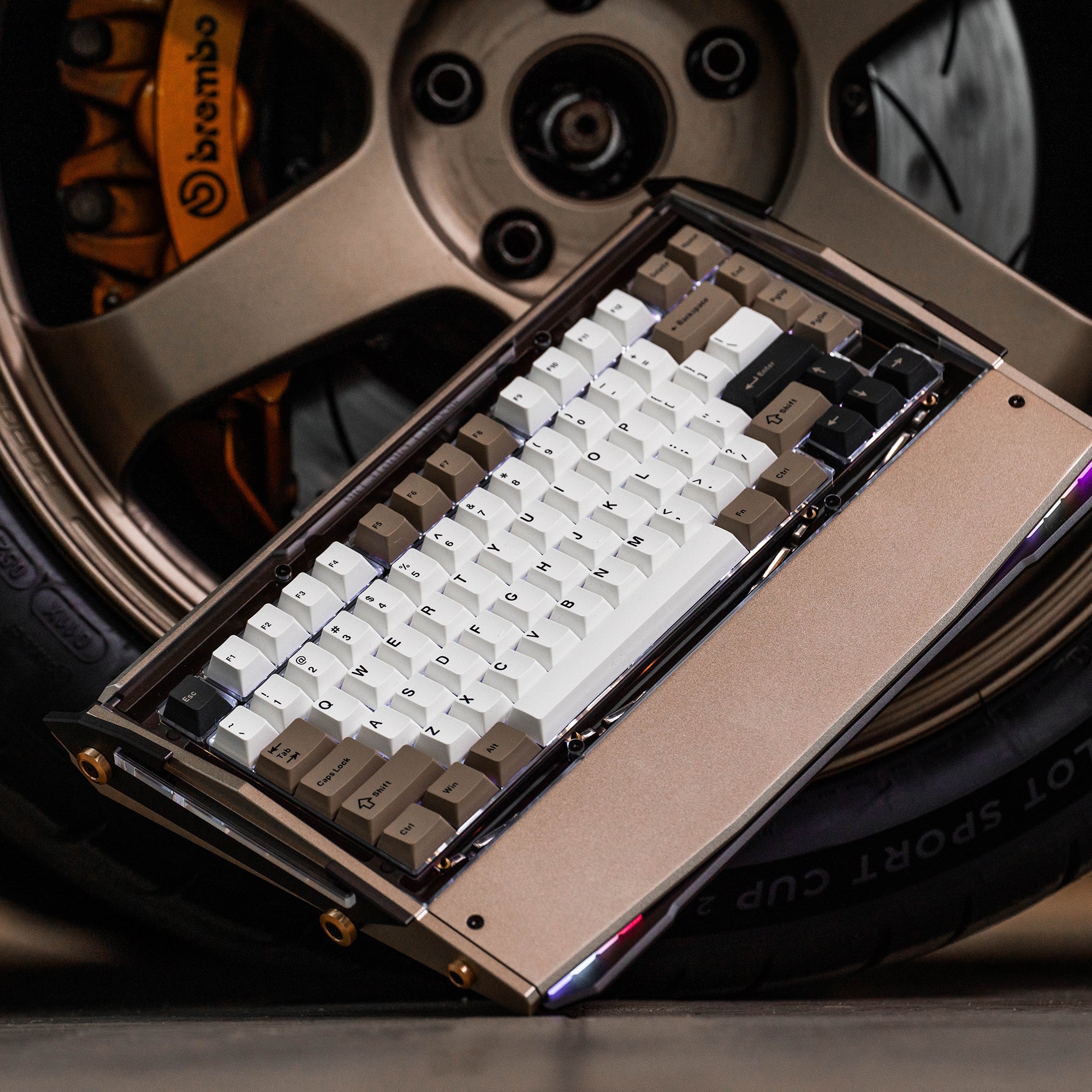

What material is Titan (silver) crafted from?
The case parts are crafted from anodized aluminum alloy and high-transparency acrylic. The internal frame is made from silver anodized aluminum alloy.
Is the wrist rest integrated or is it detachable?
The wrist rest is integrated and can't be detached.
Carbon utilizes a carbon fiber wrist rest, and Mithril utilizes a silver aluminum alloy wrist rest.
What are the dimensions?
36*25*5 cm (14.2*9.8*2 inch).
How many keys are there in total?
81 keys.
What is the manufacturing process of the keycaps?
PBT double-shot.
What are the specifications of the stabilizers used? Are they PCB-mount or plate-mount?
PCB-mount, 1.6mm, 2U*3, 6.25U*1.
Why is there an LED between the 6 and 7 keys that's constantly on?
This is the CAPS LOCK indicator, which can be disabled by pressing on the CAPS LOCK key.
How to remap keys?
1.Download AM Master from angrymiao.com/am-master and keep the keyboard connected to the computer via USB.
2. Enter diy.angrymiao.com and select the corresponding keyboard model in the top bar and navigate to the layer editing page.
3. After finishing editing, generate the JSON config file and download it.
4. Open AM Master, select your JSON config file and import it. 5. Wait until it's successfully configured.
How to apply custom RGB lighting effects?
Follow the same steps as with remapping keys, but instead navigate to the "In-Switch LED configuration" page through the link on the right bottom of the keyboard's DIY page.
How to switch between layers?
By default, you can switch to layer 2 by holding down the Fn key. You can also switch directly to corresponding layers by short pressing manually assigned layer keys. To create new layers, follow the same steps as with remapping keys. You can create a maximum of 7 layers.
Can you set macros?
Macro functionality is currently in development. RGB and key layout configurable via AM Master on Windows/macOS. All keys support remapping and assigning multimedia keys (except the Fn+Esc Power On combo), supports up to 7 layers.
Is a toolkit included in the package?
No.
Does the keyboard come with a USB cable?
Yes, a 1.5m USB cable for up to 100W (20V/5A) is included.
Does the keyboard come with a carrying case?
No.
Are other plate materials available?
Other plate materials are currently not available.
Can I modify the gear position of the leaf springs?
No.
Is 2.4G supported on this keyboard?
Yes, Black Diamond 75 supports Tri-Mode connectivity: wired, Bluetooth and 2.4G.

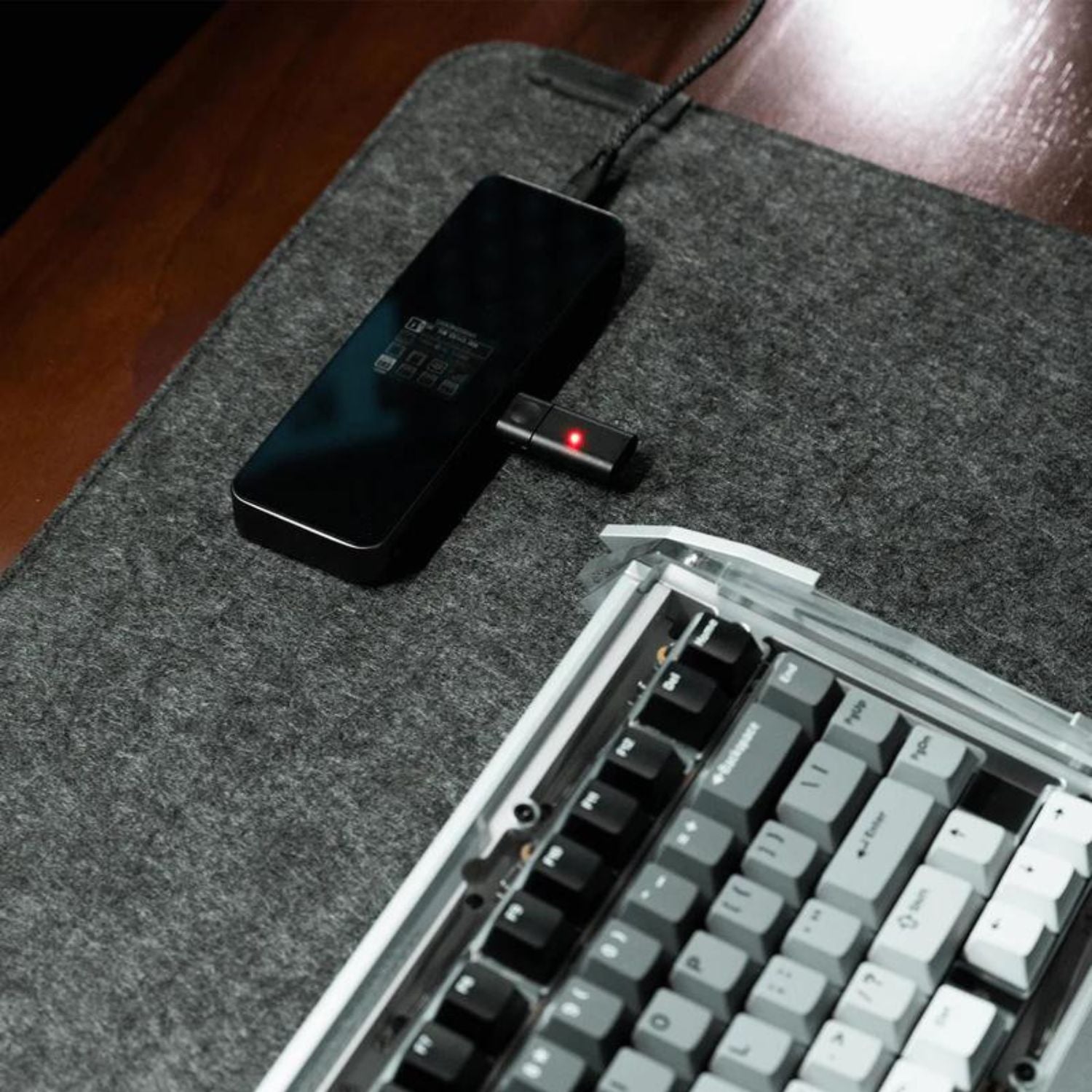

How to establish a 2.4G connection?
When using the latest firmware version, insert the 2.4G receiver into the computer and press Fn + 4. The 4 key will light up in green to indicate successful pairing.
Why can't I connect using 2.4G after restarting my computer?
Short press Fn + 4 to reconnect.

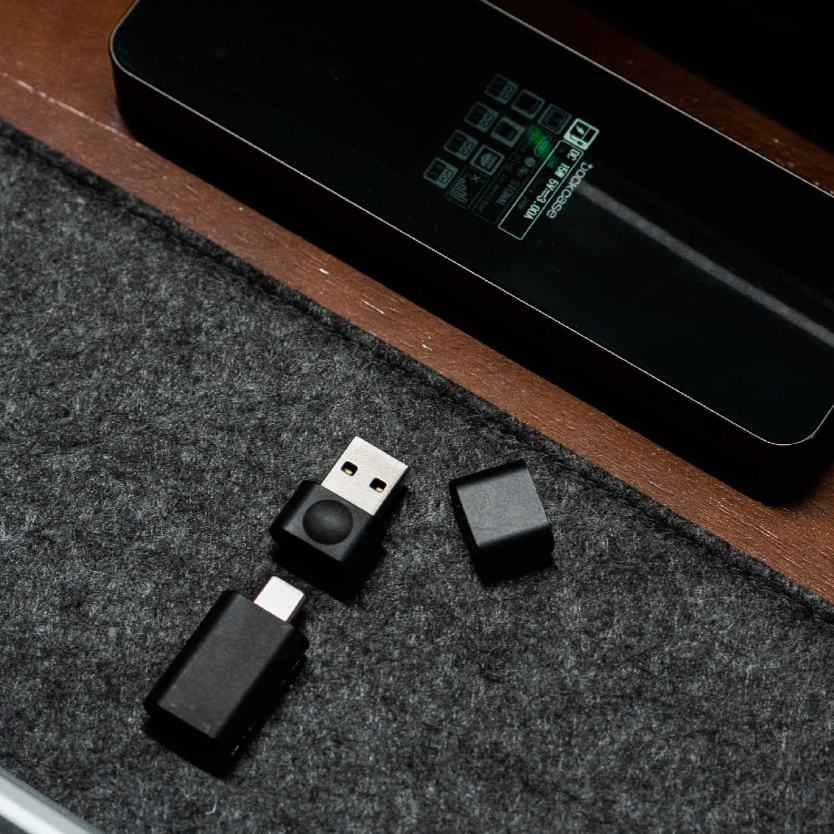

Does the 2.4G dongle have a USB Type-A or USB Type-C connector?
The 2.4G dongle comes with both connectors. You can choose one in accordance with your personal preference.
Does the 2.4G receiver come with an extension cable?
No.
Is there a storage compartment for the 2.4G dongle inside the keyboard?
No.
Does the keyboard go into standby mode automatically?
Wired mode: if the power is delivered to the keyboard, the keyboard will automatically stay in charging mode and RGB will stay on. If unplugged, the RGB will turn off automatically after 15 minutes.
Bluetooth mode: after 15 minutes, RGB will turn off automatically and Bluetooth stays connected. Press any key to wake up the keyboard.
2.4G mode: after 15 minutes, RGB will turn off automatically.
Do I need to press any key combo to switch from wireless to USB?
This is not needed. The keyboard automatically switches to wired mode when connecting the USB cable.
How long does the battery last?
When connected using 2.4G mode, the battery of Black Diamond 75 can last for up to 60 days on a single charge (RGB disabled, 8 hours of daily use and 16 hours standby).
Is there a Base Kit (without switches and keycaps)?
Black Diamond 75 is only available as Bundle, which includes switches and keycaps.
I have had the opportunity to buy 2 prebuilt keyboards and build one myself. This keyboard is by far the most aesthetic looking I have owned. The presentation for unboxing it was amazing. It was packaged with a lot of care and everything was neatly organized. The sound of it is very smooth, and while it does take a couple days for someone that went from a tactile switch keyboard to a linear one, I can say that when you get adjusted to it, it’s very smooth to use. Responsiveness of it is fantastic (I use it wired even though you can use it wireless).
As a car guy and a gamer, I appreciate the forged carbon fiber wrist rest and the look they were trying to achieve with the taillights of a Lamborghini. I highly recommend this keyboard if someone is looking for a daily driver to game with or be productive with it.
The keyboard is beautiful. It feels great to type on. It’s definitely something you have to see it person. The pictures and video simply don’t do it justice. Awesome Job!
### Review of My New Keyboard
I recently upgraded to a new keyboard, and I couldn’t be happier with the decision. From the moment I unboxed it, the quality and attention to detail were evident. Here are some of the highlights that make this keyboard stand out. The first thing I noticed was the amazing premium packaging. The keyboard has a solid, weighty feel that suggests durability. The design is sleek and modern, with a minimalistic aesthetic that fits perfectly on my desk. Typing on this keyboard is an absolute joy. The keys have a satisfying, “thocky” sound that enhances the typing experience. The keycaps have a premium texture, and the overall layout is well thought out, making it a pleasure to use. For the switch tho, I have to re-lube a couple switch for they weren’t lube. The keyboard offers multiple connectivity options, including both wired and wireless modes. The wireless mode is seamless, with no noticeable lag, making it convenient for a clutter-free set up. For those using the wireless mode, the battery life is impressive. This new keyboard has exceeded my expectations in every way. It’s a perfect blend of style, functionality, and performance. Whether you’re a professional, a gamer, or someone who spends a lot of time typing, this keyboard is a fantastic investment. I highly recommend it to anyone looking for a high-quality, reliable keyboard.
I wanted to wait a bit before giving my full review of this keyboard and I can safely say that it's one of the best keyboards I have ever used--let alone gaming keyboard. The way the board springs back is such a satisfying feel that I can't even put into words how gratifying it is to just type on this thing.
I think my only major complaint is that it can be a bit difficult to clean as dust and debris and get below the board's suspension.
Loved my keyboard. The fit and finish was exceptional. Definitely a statement piece for the office when meeting clients and a awesome typing experience.
